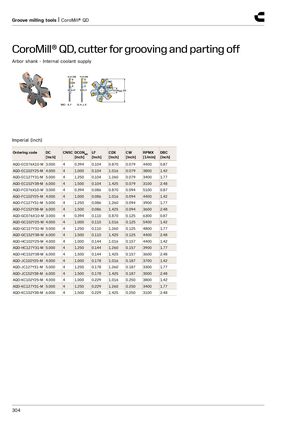

CoroMill® QD, cutter for grooving and parting off
Arbor shank - Internal coolant supply
Imperial (inch)
| Ordering code | DC [inch] | CNSC | DCONMS [inch] | LF [inch] | CDX [inch] | CW [inch] | RPMX [1/min] | DBC [inch] |
| AQD-EC076X10-M | 3.000 | 4 | 0.394 | 0.104 | 0.870 | 0.079 | 4400 | 0.87 |
| AQD-EC102Y25-M | 4.000 | 4 | 1.000 | 0.104 | 1.016 | 0.079 | 3800 | 1.42 |
| AQD-EC127Y31-M | 5.000 | 4 | 1.250 | 0.104 | 1.260 | 0.079 | 3400 | 1.77 |
| AQD-EC152Y38-M | 6.000 | 4 | 1.500 | 0.104 | 1.425 | 0.079 | 3100 | 2.48 |
| AQD-FC076X10-M | 3.000 | 4 | 0.394 | 0.086 | 0.870 | 0.094 | 5100 | 0.87 |
| AQD-FC102Y25-M | 4.000 | 4 | 1.000 | 0.086 | 1.016 | 0.094 | 4400 | 1.42 |
| AQD-FC127Y31-M | 5.000 | 4 | 1.250 | 0.086 | 1.260 | 0.094 | 3900 | 1.77 |
| AQD-FC152Y38-M | 6.000 | 4 | 1.500 | 0.086 | 1.425 | 0.094 | 3600 | 2.48 |
| AQD-GC076X10-M | 3.000 | 4 | 0.394 | 0.110 | 0.870 | 0.125 | 6300 | 0.87 |
| AQD-GC102Y25-M | 4.000 | 4 | 1.000 | 0.110 | 1.016 | 0.125 | 5400 | 1.42 |
| AQD-GC127Y31-M | 5.000 | 4 | 1.250 | 0.110 | 1.260 | 0.125 | 4800 | 1.77 |
| AQD-GC152Y38-M | 6.000 | 4 | 1.500 | 0.110 | 1.425 | 0.125 | 4400 | 2.48 |
| AQD-HC102Y25-M | 4.000 | 4 | 1.000 | 0.144 | 1.016 | 0.157 | 4400 | 1.42 |
| AQD-HC127Y31-M | 5.000 | 4 | 1.250 | 0.144 | 1.260 | 0.157 | 3900 | 1.77 |
| AQD-HC152Y38-M | 6.000 | 4 | 1.500 | 0.144 | 1.425 | 0.157 | 3600 | 2.48 |
| AQD-JC102Y25-M | 4.000 | 4 | 1.000 | 0.178 | 1.016 | 0.187 | 3700 | 1.42 |
| AQD-JC127Y31-M | 5.000 | 4 | 1.250 | 0.178 | 1.260 | 0.187 | 3300 | 1.77 |
| AQD-JC152Y38-M | 6.000 | 4 | 1.500 | 0.178 | 1.425 | 0.187 | 3000 | 2.48 |
| AQD-KC102Y25-M | 4.000 | 4 | 1.000 | 0.229 | 1.016 | 0.250 | 3800 | 1.42 |
| AQD-KC127Y31-M | 5.000 | 4 | 1.250 | 0.229 | 1.260 | 0.250 | 3400 | 1.77 |
| AQD-KC152Y38-M | 6.000 | 4 | 1.500 | 0.229 | 1.425 | 0.250 | 3100 | 2.48 |
