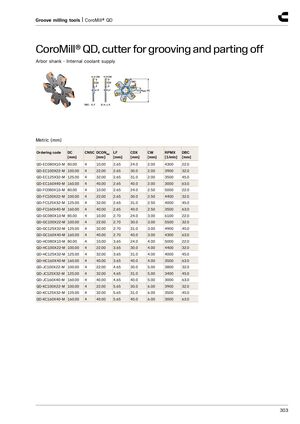

CoroMill® QD, cutter for grooving and parting off
Arbor shank - Internal coolant supply
Metric (mm)
| Ordering code | DC [mm] | CNSC | DCONMS [mm] | LF [mm] | CDX [mm] | CW [mm] | RPMX [1/min] | DBC [mm] |
| QD-EC080X10-M | 80.00 | 4 | 10.00 | 2.65 | 24.0 | 2.00 | 4300 | 22.0 |
| QD-EC100X22-M | 100.00 | 4 | 22.00 | 2.65 | 30.0 | 2.00 | 3900 | 32.0 |
| QD-EC125X32-M | 125.00 | 4 | 32.00 | 2.65 | 31.0 | 2.00 | 3500 | 45.0 |
| QD-EC160X40-M | 160.00 | 4 | 40.00 | 2.65 | 40.0 | 2.00 | 3000 | 63.0 |
| QD-FC080X10-M | 80.00 | 4 | 10.00 | 2.65 | 24.0 | 2.50 | 5000 | 22.0 |
| QD-FC100X22-M | 100.00 | 4 | 22.00 | 2.65 | 30.0 | 2.50 | 4400 | 32.0 |
| QD-FC125X32-M | 125.00 | 4 | 32.00 | 2.65 | 31.0 | 2.50 | 4000 | 45.0 |
| QD-FC160X40-M | 160.00 | 4 | 40.00 | 2.65 | 40.0 | 2.50 | 3500 | 63.0 |
| QD-GC080X10-M | 80.00 | 4 | 10.00 | 2.70 | 24.0 | 3.00 | 6100 | 22.0 |
| QD-GC100X22-M | 100.00 | 4 | 22.00 | 2.70 | 30.0 | 3.00 | 5500 | 32.0 |
| QD-GC125X32-M | 125.00 | 4 | 32.00 | 2.70 | 31.0 | 3.00 | 4900 | 45.0 |
| QD-GC160X40-M | 160.00 | 4 | 40.00 | 2.70 | 40.0 | 3.00 | 4300 | 63.0 |
| QD-HC080X10-M | 80.00 | 4 | 10.00 | 3.65 | 24.0 | 4.00 | 5000 | 22.0 |
| QD-HC100X22-M | 100.00 | 4 | 22.00 | 3.65 | 30.0 | 4.00 | 4400 | 32.0 |
| QD-HC125X32-M | 125.00 | 4 | 32.00 | 3.65 | 31.0 | 4.00 | 4000 | 45.0 |
| QD-HC160X40-M | 160.00 | 4 | 40.00 | 3.65 | 40.0 | 4.00 | 3500 | 63.0 |
| QD-JC100X22-M | 100.00 | 4 | 22.00 | 4.65 | 30.0 | 5.00 | 3800 | 32.0 |
| QD-JC125X32-M | 125.00 | 4 | 32.00 | 4.65 | 31.0 | 5.00 | 3400 | 45.0 |
| QD-JC160X40-M | 160.00 | 4 | 40.00 | 4.65 | 40.0 | 5.00 | 3000 | 63.0 |
| QD-KC100X22-M | 100.00 | 4 | 22.00 | 5.65 | 30.0 | 6.00 | 3900 | 32.0 |
| QD-KC125X32-M | 125.00 | 4 | 32.00 | 5.65 | 31.0 | 6.00 | 3500 | 45.0 |
| QD-KC160X40-M | 160.00 | 4 | 40.00 | 5.65 | 40.0 | 6.00 | 3000 | 63.0 |
