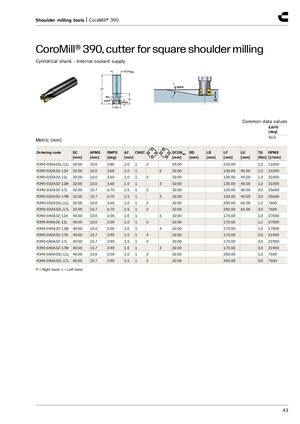

Инструмент для торцевого фрезерования | CoroMill® 390
CoroMill® 390, фреза для обработки прямоугольных торцевых канавок
Цилиндрический хвостовик - Внутренняя подача СОЖ
Общие значения данных: KAPR [град] = 90,0
Метрическая система (мм)
| Код заказа | DC [мм] | APMX [мм] | RMPX [град] | AZ [мм] | CNSC | DCONMS [мм] | BD [мм] | LB [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [об/мин] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R390-030A25L-11L | 30,00 | 10,0 | 3,80 | 1,0 | 1, 2 | 25,00 | 210,00 | 1,2 | 11000 | |||
| R390-032A32-11H | 32,00 | 10,0 | 3,60 | 1,0 | 1, 5 | 32,00 | 130,00 | 40,00 | 1,2 | 31000 | ||
| R390-032A32-11L | 32,00 | 10,0 | 3,60 | 1,0 | 1, 2 | 32,00 | 130,00 | 40,00 | 1,2 | 31000 | ||
| R390-032A32-11M | 32,00 | 10,0 | 3,60 | 1,0 | 1, 3 | 32,00 | 130,00 | 40,00 | 1,2 | 31000 | ||
| R390-032A32-17L | 32,00 | 15,7 | 6,70 | 1,5 | 1, 2 | 32,00 | 130,00 | 40,00 | 3,0 | 25600 | ||
| R390-032A32-17M | 32,00 | 15,7 | 6,70 | 1,5 | 1, 3 | 32,00 | 130,00 | 40,00 | 3,0 | 25600 | ||
| R390-032A32L-11L | 32,00 | 10,0 | 3,60 | 1,0 | 1, 2 | 32,00 | 250,00 | 65,00 | 1,2 | 7600 | ||
| R390-032A32L-17L | 32,00 | 15,7 | 6,70 | 1,5 | 1, 2 | 32,00 | 250,00 | 65,00 | 3,0 | 7600 | ||
| R390-040A32-11H | 40,00 | 10,0 | 2,00 | 1,0 | 1, 6 | 32,00 | 170,00 | 1,2 | 27000 | |||
| R390-040A32-11L | 40,00 | 10,0 | 2,00 | 1,0 | 1, 2 | 32,00 | 170,00 | 1,2 | 27000 | |||
| R390-040A32-11M | 40,00 | 10,0 | 2,00 | 1,0 | 1, 4 | 32,00 | 170,00 | 1,2 | 27000 | |||
| R390-040A32-17H | 40,00 | 15,7 | 3,90 | 1,5 | 1, 4 | 32,00 | 170,00 | 3,0 | 21900 | |||
| R390-040A32-17L | 40,00 | 15,7 | 3,90 | 1,5 | 1, 2 | 32,00 | 170,00 | 3,0 | 21900 | |||
| R390-040A32-17M | 40,00 | 15,7 | 3,90 | 1,5 | 1, 3 | 32,00 | 170,00 | 3,0 | 21900 | |||
| R390-040A32L-11L | 40,00 | 10,0 | 2,00 | 1,0 | 1, 2 | 32,00 | 250,00 | 1,2 | 7600 | |||
| R390-040A32L-17L | 40,00 | 15,7 | 3,90 | 1,5 | 1, 2 | 32,00 | 250,00 | 3,0 | 7600 |
R = Правое вращение, L = Левое вращение
