Инструмент для торцевого фрезерования | CoroMill® 390

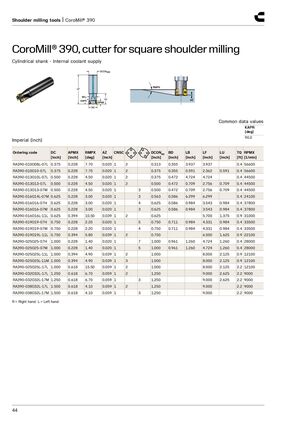

CoroMill® 390, фреза для обработки прямоугольных торцевых канавок
Цилиндрический хвостовик - Внутренняя подача СОЖ
Общие значения данных: KAPR [град] = 90,0
Дюймовая система (дюймы)
| Код заказа | DC [дюйм] | APMX [дюйм] | RMPX [град] | AZ [дюйм] | CNSC | DCONMS [дюйм] | BD [дюйм] | LB [дюйм] | LF [дюйм] | LU [дюйм] | TQ [фунт-сила] | RPMX [об/мин] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RA390-010O08L-07L | 0,375 | 0,228 | 7,70 | 0,020 | 1, 2 | 0,313 | 0,355 | 3,937 | 3,937 | 0,4 | 56600 | |
| RA390-010O10-07L | 0,375 | 0,228 | 7,70 | 0,020 | 1, 2 | 0,375 | 0,355 | 0,591 | 2,362 | 0,591 | 0,4 | 56600 |
| RA390-013O10L-07L | 0,500 | 0,228 | 4,50 | 0,020 | 1, 2 | 0,375 | 0,472 | 4,724 | 4,724 | 0,4 | 44500 | |
| RA390-013O13-07L | 0,500 | 0,228 | 4,50 | 0,020 | 1, 2 | 0,500 | 0,472 | 0,709 | 2,756 | 0,709 | 0,4 | 44500 |
| RA390-013O13-07M | 0,500 | 0,228 | 4,50 | 0,020 | 1, 3 | 0,500 | 0,472 | 0,709 | 2,756 | 0,709 | 0,4 | 44500 |
| RA390-016O14L-07M | 0,625 | 0,228 | 3,00 | 0,020 | 1, 3 | 0,563 | 0,586 | 6,299 | 6,299 | 0,4 | 24100 | |
| RA390-016O16-07H | 0,625 | 0,228 | 3,00 | 0,020 | 1, 4 | 0,625 | 0,586 | 0,984 | 3,543 | 0,984 | 0,4 | 37800 |
| RA390-016O16-07M | 0,625 | 0,228 | 3,00 | 0,020 | 1, 3 | 0,625 | 0,586 | 0,984 | 3,543 | 0,984 | 0,4 | 37800 |
| RA390-016O16L-11L | 0,625 | 0,394 | 10,50 | 0,039 | 1, 2 | 0,625 | 5,700 | 1,375 | 0,9 | 31000 | ||
| RA390-019O19-07H | 0,750 | 0,228 | 2,20 | 0,020 | 1, 5 | 0,750 | 0,711 | 0,984 | 4,331 | 0,984 | 0,4 | 33500 |
| RA390-019O19-07M | 0,750 | 0,228 | 2,20 | 0,020 | 1, 4 | 0,750 | 0,711 | 0,984 | 4,331 | 0,984 | 0,4 | 33500 |
| RA390-019O19L-11L | 0,750 | 0,394 | 5,80 | 0,039 | 1, 2 | 0,750 | 6,500 | 1,625 | 0,9 | 22100 | ||
| RA390-025O25-07H | 1,000 | 0,228 | 1,40 | 0,020 | 1, 7 | 1,000 | 0,961 | 1,260 | 4,724 | 1,260 | 0,4 | 28000 |
| RA390-025O25-07M | 1,000 | 0,228 | 1,40 | 0,020 | 1, 5 | 1,000 | 0,961 | 1,260 | 4,724 | 1,260 | 0,4 | 28000 |
| RA390-025O25L-11L | 1,000 | 0,394 | 4,90 | 0,039 | 1, 2 | 1,000 | 8,000 | 2,125 | 0,9 | 12100 | ||
| RA390-025O25L-11M | 1,000 | 0,394 | 4,90 | 0,039 | 1, 3 | 1,000 | 8,000 | 2,125 | 0,9 | 12100 | ||
| RA390-025O25L-17L | 1,000 | 0,618 | 15,50 | 0,059 | 1, 2 | 1,000 | 8,000 | 2,125 | 2,2 | 12100 | ||
| RA390-032O32L-17L | 1,250 | 0,618 | 6,70 | 0,059 | 1, 2 | 1,250 | 9,000 | 2,625 | 2,2 | 9000 | ||
| RA390-032O32L-17M | 1,250 | 0,618 | 6,70 | 0,059 | 1, 3 | 1,250 | 9,000 | 2,625 | 2,2 | 9000 | ||
| RA390-038O32L-17L | 1,500 | 0,618 | 4,10 | 0,059 | 1, 2 | 1,250 | 9,000 | 2,2 | 9000 | |||
| RA390-038O32L-17M | 1,500 | 0,618 | 4,10 | 0,059 | 1, 3 | 1,250 | 9,000 | 2,2 | 9000 |
R = Правое вращение, L = Левое вращение
