Инструмент для торцевого фрезерования | CoroMill® 390

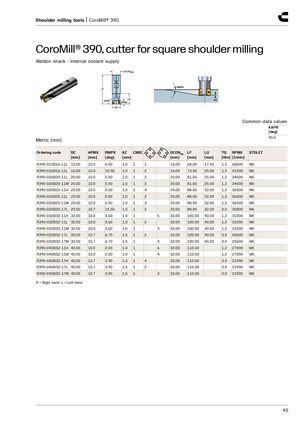

CoroMill® 390, фреза для обработки прямоугольных торцевых канавок
Хвостовик Weldon - Внутренняя подача СОЖ
Общие значения данных: KAPR [град] = 90,0
Метрическая система (мм)
| Код заказа | DC [мм] | APMX [мм] | RMPX [град] | AZ [мм] | CNSC | DCONMS [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [об/мин] | STDLET |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R390-012B16-11L | 12,00 | 10,0 | 6,00 | 1,0 | 1, 1 | 16,00 | 68,00 | 17,20 | 1,2 | 68600 | WE |
| R390-016B16-11L | 16,00 | 10,0 | 10,50 | 1,0 | 1, 2 | 16,00 | 73,00 | 25,00 | 1,2 | 41500 | WE |
| R390-020B20-11L | 20,00 | 10,0 | 5,50 | 1,0 | 1, 2 | 20,00 | 81,00 | 25,00 | 1,2 | 34600 | WE |
| R390-020B20-11M | 20,00 | 10,0 | 5,50 | 1,0 | 1, 3 | 20,00 | 81,00 | 25,00 | 1,2 | 34600 | WE |
| R390-025B25-11H | 25,00 | 10,0 | 5,00 | 1,0 | 1, 4 | 25,00 | 88,00 | 32,00 | 1,2 | 36500 | WE |
| R390-025B25-11L | 25,00 | 10,0 | 5,00 | 1,0 | 1, 2 | 25,00 | 88,00 | 32,00 | 1,2 | 36500 | WE |
| R390-025B25-11M | 25,00 | 10,0 | 5,00 | 1,0 | 1, 3 | 25,00 | 88,00 | 32,00 | 1,2 | 36500 | WE |
| R390-025B25-17L | 25,00 | 15,7 | 15,50 | 1,5 | 1, 2 | 25,00 | 88,00 | 32,00 | 3,0 | 30800 | WE |
| R390-032B32-11H | 32,00 | 10,0 | 3,60 | 1,0 | 1, 5 | 32,00 | 100,00 | 40,00 | 1,2 | 31000 | WE |
| R390-032B32-11L | 32,00 | 10,0 | 3,60 | 1,0 | 1, 2 | 32,00 | 100,00 | 40,00 | 1,2 | 31000 | WE |
| R390-032B32-11M | 32,00 | 10,0 | 3,60 | 1,0 | 1, 3 | 32,00 | 100,00 | 40,00 | 1,2 | 31000 | WE |
| R390-032B32-17L | 32,00 | 15,7 | 6,70 | 1,5 | 1, 2 | 32,00 | 100,00 | 40,00 | 3,0 | 25600 | WE |
| R390-032B32-17M | 32,00 | 15,7 | 6,70 | 1,5 | 1, 3 | 32,00 | 100,00 | 40,00 | 3,0 | 25600 | WE |
| R390-040B32-11H | 40,00 | 10,0 | 2,00 | 1,0 | 1, 6 | 32,00 | 110,00 | 1,2 | 27000 | WE | |
| R390-040B32-11M | 40,00 | 10,0 | 2,00 | 1,0 | 1, 4 | 32,00 | 110,00 | 1,2 | 27000 | WE | |
| R390-040B32-17H | 40,00 | 15,7 | 3,90 | 1,5 | 1, 4 | 32,00 | 110,00 | 3,0 | 21900 | WE | |
| R390-040B32-17L | 40,00 | 15,7 | 3,90 | 1,5 | 1, 2 | 32,00 | 110,00 | 3,0 | 21900 | WE | |
| R390-040B32-17M | 40,00 | 15,7 | 3,90 | 1,5 | 1, 3 | 32,00 | 110,00 | 3,0 | 21900 | WE |
R = Правое вращение, L = Левое вращение
