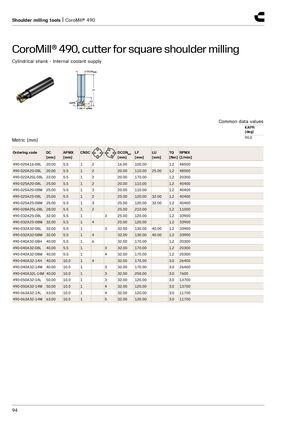

CoroMill® 490, cutter for square shoulder milling
Cylindrical shank - Internal coolant supply
Common data values
| KAPR [deg] |
| 90.0 |
| Ordering code | DC [mm] | APMX [mm] | CNSC | DCONMS [mm] | LF [mm] | LU [mm] | TQ [Nm] | RPMX [1/min] | ||
| 490-020A16-08L | 20.00 | 5.5 | 1 | 2 | 16.00 | 100.00 | 1.2 | 48500 | ||
| 490-020A20-08L | 20.00 | 5.5 | 1 | 2 | 20.00 | 110.00 | 25.00 | 1.2 | 48500 | |
| 490-022A20L-08L | 22.00 | 5.5 | 1 | 2 | 20.00 | 170.00 | 1.2 | 20300 | ||
| 490-025A20-08L | 25.00 | 5.5 | 1 | 2 | 20.00 | 110.00 | 1.2 | 40400 | ||
| 490-025A20-08M | 25.00 | 5.5 | 1 | 3 | 20.00 | 110.00 | 1.2 | 40400 | ||
| 490-025A25-08L | 25.00 | 5.5 | 1 | 2 | 25.00 | 120.00 | 32.00 | 1.2 | 40400 | |
| 490-025A25-08M | 25.00 | 5.5 | 1 | 3 | 25.00 | 120.00 | 32.00 | 1.2 | 40400 | |
| 490-028A25L-08L | 28.00 | 5.5 | 1 | 2 | 25.00 | 210.00 | 1.2 | 11000 | ||
| 490-032A25-08L | 32.00 | 5.5 | 1 | 3 | 25.00 | 120.00 | 1.2 | 33900 | ||
| 490-032A25-08M | 32.00 | 5.5 | 1 | 4 | 25.00 | 120.00 | 1.2 | 33900 | ||
| 490-032A32-08L | 32.00 | 5.5 | 1 | 3 | 32.00 | 130.00 | 40.00 | 1.2 | 33900 | |
| 490-032A32-08M | 32.00 | 5.5 | 1 | 4 | 32.00 | 130.00 | 40.00 | 1.2 | 33900 | |
| 490-040A32-08H | 40.00 | 5.5 | 1 | 6 | 32.00 | 170.00 | 1.2 | 20300 | ||
| 490-040A32-08L | 40.00 | 5.5 | 1 | 3 | 32.00 | 170.00 | 1.2 | 20300 | ||
| 490-040A32-08M | 40.00 | 5.5 | 1 | 4 | 32.00 | 170.00 | 1.2 | 20300 | ||
| 490-040A32-14H | 40.00 | 10.0 | 1 | 4 | 32.00 | 170.00 | 3.0 | 26400 | ||
| 490-040A32-14M | 40.00 | 10.0 | 1 | 3 | 32.00 | 170.00 | 3.0 | 26400 | ||
| 490-040A32L-14M | 40.00 | 10.0 | 1 | 3 | 32.00 | 250.00 | 3.0 | 7600 | ||
| 490-050A32-14L | 50.00 | 10.0 | 1 | 3 | 32.00 | 120.00 | 3.0 | 13700 | ||
| 490-050A32-14M | 50.00 | 10.0 | 1 | 4 | 32.00 | 120.00 | 3.0 | 13700 | ||
| 490-063A32-14L | 63.00 | 10.0 | 1 | 4 | 32.00 | 120.00 | 3.0 | 11700 | ||
| 490-063A32-14M | 63.00 | 10.0 | 1 | 5 | 32.00 | 120.00 | 3.0 | 11700 |
