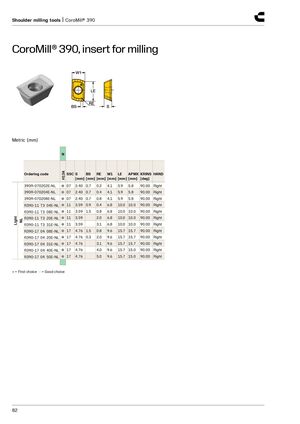

CoroMill® 390, insert for milling
Metric (mm)
| N | |||||||||||
| Ordering code | H13A | SSC | S [mm] | BS [mm] | RE [mm] | W1 [mm] | LE [mm] | APMX [mm] | KRINS [deg] | HAND | |
| 390R-070202E-NL | ● | 07 | 2.40 | 0.7 | 0.2 | 4.1 | 5.9 | 5.8 | 90.00 | Right | |
| 390R-070204E-NL | ● | 07 | 2.40 | 0.7 | 0.4 | 4.1 | 5.9 | 5.8 | 90.00 | Right | |
| 390R-070208E-NL | ● | 07 | 2.40 | 0.7 | 0.8 | 4.1 | 5.9 | 5.8 | 90.00 | Right | |
| R390-11 T3 04E-NL | ● | 11 | 3.59 | 0.9 | 0.4 | 6.8 | 10.0 | 10.0 | 90.00 | Right | |
| R390-11 T3 08E-NL | ● | 11 | 3.59 | 1.5 | 0.8 | 6.8 | 10.0 | 10.0 | 90.00 | Right | |
| ght NL | R390-11 T3 20E-NL | ● | 11 | 3.59 | 2.0 | 6.8 | 10.0 | 10.0 | 90.00 | Right | |
| Li | R390-11 T3 31E-NL | ● | 11 | 3.59 | 3.1 | 6.8 | 10.0 | 10.0 | 90.00 | Right | |
| R390-17 04 08E-NL | ● | 17 | 4.76 | 1.5 | 0.8 | 9.6 | 15.7 | 15.7 | 90.00 | Right | |
| R390-17 04 20E-NL | ● | 17 | 4.76 | 0.3 | 2.0 | 9.6 | 15.7 | 15.7 | 90.00 | Right | |
| R390-17 04 31E-NL | ● | 17 | 4.76 | 3.1 | 9.6 | 15.7 | 15.7 | 90.00 | Right | ||
| R390-17 04 40E-NL | ● | 17 | 4.76 | 4.0 | 9.6 | 15.7 | 15.0 | 90.00 | Right | ||
| R390-17 04 50E-NL | ● | 17 | 4.76 | 5.0 | 9.6 | 15.7 | 15.0 | 90.00 | Right |
- = First choice ○ = Good choice
