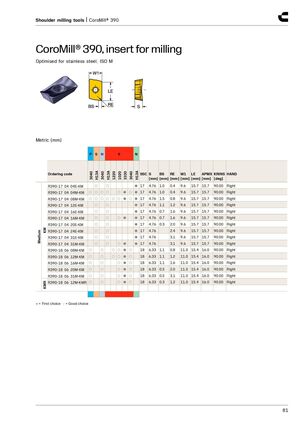

CoroMill® 390, insert for milling
Optimised for stainless steel, ISO M
Metric (mm)
| P S | H | K | N | ||||||||||||||
| Ordering code | 3040 H13A | 3040 | H13A | 1220 | 1020 | 3330 | 3040 | H13A SSC | S [mm] | BS [mm] | RE [mm] | W1 [mm] | LE [mm] | APMX [mm] | KRINS [deg] | HAND | |
| R390-17 04 04E-KM | ○ | ○ | ● | 17 | 4.76 | 1.0 | 0.4 | 9.6 | 15.7 | 15.7 | 90.00 | Right | |||||
| R390-17 04 04M-KM | ○○ | ○ | ○ | ○ | ● | ○● | 17 | 4.76 | 1.0 | 0.4 | 9.6 | 15.7 | 15.7 | 90.00 | Right | ||
| R390-17 04 08M-KM | ○○ | ○ | ○ | ○ | ○ | ● | ○● | 17 | 4.76 | 1.5 | 0.8 | 9.6 | 15.7 | 15.7 | 90.00 | Right | |
| R390-17 04 12E-KM | ○ | ○ | ● | 17 | 4.76 | 1.1 | 1.2 | 9.6 | 15.7 | 15.7 | 90.00 | Right | |||||
| R390-17 04 16E-KM | ○ | ○ | ● | 17 | 4.76 | 0.7 | 1.6 | 9.6 | 15.7 | 15.7 | 90.00 | Right | |||||
| R390-17 04 16M-KM | ○ | ○ | ○ | ● | ● | 17 | 4.76 | 0.7 | 1.6 | 9.6 | 15.7 | 15.7 | 90.00 | Right | |||
| R390-17 04 20E-KM | ○ | ○ | ● | 17 | 4.76 | 0.3 | 2.0 | 9.6 | 15.7 | 15.7 | 90.00 | Right | |||||
| um KM | R390-17 04 24E-KM | ○ | ○ | ● | 17 | 4.76 | 2.4 | 9.6 | 15.7 | 15.7 | 90.00 | Right | |||||
| edi | R390-17 04 31E-KM | ○ | ○ | ● | 17 | 4.76 | 3.1 | 9.6 | 15.7 | 15.7 | 90.00 | Right | |||||
| M | R390-17 04 31M-KM | ○ | ○ | ○ | ● | ● | 17 | 4.76 | 3.1 | 9.6 | 15.7 | 15.7 | 90.00 | Right | |||
| R390-18 06 08M-KM | ○ | ○ | ○ | ○ | ● | ○ | 18 | 6.33 | 1.1 | 0.8 | 11.0 | 15.4 | 16.0 | 90.00 | Right | ||
| R390-18 06 12M-KM | ○ | ○ | ○ | ○ | ● | ○ | 18 | 6.33 | 1.1 | 1.2 | 11.0 | 15.4 | 16.0 | 90.00 | Right | ||
| R390-18 06 16M-KM | ○ | ○ | ○ | ● | ○ | 18 | 6.33 | 1.1 | 1.6 | 11.0 | 15.4 | 16.0 | 90.00 | Right | |||
| R390-18 06 20M-KM | ○ | ○ | ○ | ● | ○ | 18 | 6.33 | 0.5 | 2.0 | 11.0 | 15.4 | 16.0 | 90.00 | Right | |||
| R390-18 06 31M-KM | ○ | ○ | ○ | ● | ○ | 18 | 6.33 | 0.5 | 3.1 | 11.0 | 15.4 | 16.0 | 90.00 | Right | |||
| KMR | R390-18 06 12M-KMR | ○ | ○ | ○ | ● | ○ | 18 | 6.33 | 0.3 | 1.2 | 11.0 | 15.4 | 16.0 | 90.00 | Right |
- = First choice = Good choice
