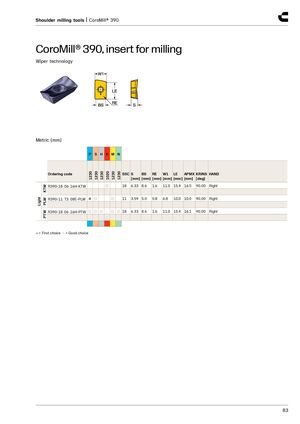

CoroMill® 390, insert for milling
Wiper technology
Metric (mm)
| Ordering code | P 1230 | S H 1230 1230 | K 1020 | M 1230 | N 1230 SSC | S [mm] | BS [mm] | RE [mm] | W1 [mm] | LE [mm] | APMX [mm] | KRINS [deg] | HAND |
| KTW R390-18 06 16H-KTW | ○ | 18 | 6.33 | 8.6 | 1.6 | 11.0 | 15.4 | 16.0 | 90.00 | Right | |||
| Light PLW R390-11 T3 08E-PLW | ● | ○ | ○ | 11 | 3.59 | 5.0 | 0.8 | 6.8 | 10.0 | 10.0 | 90.00 | Right | |
| PTW R390-18 06 16H-PTW | ○ | ○○ | ○ | ○18 | 6.33 | 8.6 | 1.6 | 11.0 | 15.4 | 16.1 | 90.00 | Right |
- = First choice ○ = Good choice
