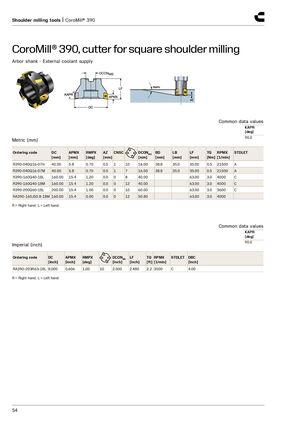

Инструменты для торцевого фрезерования | CoroMill® 390
CoroMill® 390, резец для фрезеровки квадратных торцевых канавок
Хвостовик на оправке - Внешняя подача смазочно-охлаждающей жидкости
Общие значения данных: KAPR = 90,0°
Метрические размеры (мм)
| Обозначение заказа | DC [мм] | APMX [мм] | RMPX [°] | AZ [мм] | CNSC | DCONMS [мм] | BD [мм] | LB [мм] | LF [мм] | TQ [Нм] | RPMX [об/мин] | STDLET | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R390-040Q16-07H | 40,00 | 5,8 | 0,70 | 0,5 | 1 | 10 | 16,00 | 38,8 | 35,0 | 35,00 | 0,5 | 21500 | A |
| R390-040Q16-07M | 40,00 | 5,8 | 0,70 | 0,5 | 1 | 7 | 16,00 | 38,8 | 35,0 | 35,00 | 0,5 | 21500 | A |
| R390-160Q40-18L | 160,00 | 15,4 | 1,20 | 0,0 | 0 | 8 | 40,00 | — | — | 63,00 | 3,0 | 4000 | C |
| R390-160Q40-18M | 160,00 | 15,4 | 1,20 | 0,0 | 0 | 12 | 40,00 | — | — | 63,00 | 3,0 | 4000 | C |
| R390-200Q60-18L | 200,00 | 15,4 | 1,00 | 0,0 | 0 | 10 | 60,00 | — | — | 63,00 | 3,0 | 3600 | C |
| RA390-160J50.8-18M | 160,00 | 15,4 | 0,00 | 0,0 | 0 | 12 | 50,80 | — | — | 63,00 | 3,0 | 4000 | — |
R = правое исполнение, L = левое исполнение
Дюймовые размеры (дюйм)
| Обозначение заказа | DC [дюйм] | APMX [дюйм] | RMPX [°] | DCONMS [дюйм] | LF [дюйм] | TQ [фунт·сила·фут] | RPMX [об/мин] | STDLET | DBC [дюйм] | |
|---|---|---|---|---|---|---|---|---|---|---|
| RA390-203R63-18L | 8,000 | 0,606 | 1,00 | 10 | 2,500 | 2,480 | 2,2 | 3500 | C | 4,00 |
R = правое исполнение, L = левое исполнение
