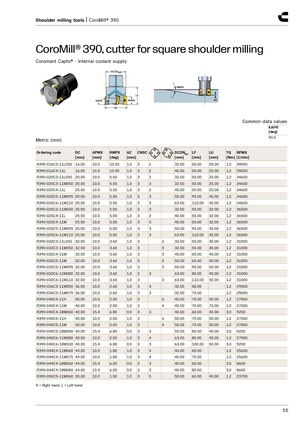

Shoulder milling tools | CoroMill® 390 CoroMill® 390, cutter for square shoulder milling​​ Coromant Capto® - Internal coolant supply Common data values KAPR [deg] 90.0 Metric (mm) Ordering code DC APMX RMPX AZ CNSC DCONMS LF LU TQ RPMX [mm] [mm] [deg] [mm] [mm] [mm] [mm] [Nm] [1/min] R390-016C3-11L050 16.00 10.0 10.50 1.0 3 2 32.00 50.00 25.00 1.2 39000 R390-016C4-11L 16.00 10.0 10.50 1.0 3 2 40.00 50.00 25.00 1.2 39000 R390-020C3-11L050 20.00 10.0 5.50 1.0 3 2 32.00 50.00 25.00 1.2 34600 R390-020C3-11M050 20.00 10.0 5.50 1.0 3 3 32.00 50.00 25.00 1.2 34600 R390-020C4-11L 20.00 10.0 5.50 1.0 3 2 40.00 50.00 25.00 1.2 34600 R390-020C5-11M095 20.00 10.0 5.50 1.0 3 3 50.00 95.00 40.00 1.2 34600 R390-020C6-11M110 20.00 10.0 5.50 1.0 3 3 63.00 110.00 40.00 1.2 34600 R390-025C3-11M050 25.00 10.0 5.00 1.0 3 3 32.00 50.00 32.00 1.2 36500 R390-025C4-11L 25.00 10.0 5.00 1.0 3 2 40.00 55.00 32.00 1.2 36500 R390-025C4-11M 25.00 10.0 5.00 1.0 3 3 40.00 55.00 32.00 1.2 36500 R390-025C5-11M095 25.00 10.0 5.00 1.0 3 3 50.00 95.00 45.00 1.2 36500 R390-025C6-11M110 25.00 10.0 5.00 1.0 3 3 63.00 110.00 45.00 1.2 36500 R390-032C3-11L050 32.00 10.0 3.60 1.0 3 2 32.00 50.00 35.00 1.2 31000 R390-032C3-11M050 32.00 10.0 3.60 1.0 3 3 32.00 50.00 35.00 1.2 31000 R390-032C4-11M 32.00 10.0 3.60 1.0 3 3 40.00 65.00 40.00 1.2 31000 R390-032C5-11M 32.00 10.0 3.60 1.0 3 3 50.00 65.00 40.00 1.2 31000 R390-032C5-11M095 32.00 10.0 3.60 1.0 3 3 50.00 95.00 50.00 1.2 31000 R390-032C6-11M080 32.00 10.0 3.60 1.0 3 3 63.00 80.00 40.00 1.2 31000 R390-032C6-11M110 32.00 10.0 3.60 1.0 3 3 63.00 110.00 50.00 1.2 31000 R390-036C3-11M050 36.00 10.0 2.60 1.0 3 3 32.00 50.00 1.2 29000 R390-036C3-11M075 36.00 10.0 2.60 1.0 3 3 32.00 75.00 1.2 29000 R390-040C4-11H 40.00 10.0 2.00 1.0 3 6 40.00 70.00 50.00 1.2 27000 R390-040C4-11M 40.00 10.0 2.00 1.0 3 4 40.00 70.00 70.00 1.2 27000 R390-040C4-18M060 40.00 15.4 6.80 0.0 3 3 40.00 60.00 40.00 3.0 9200 R390-040C5-11H 40.00 10.0 2.00 1.0 3 6 50.00 75.00 50.00 1.2 27000 R390-040C5-11M 40.00 10.0 2.00 1.0 3 4 50.00 75.00 50.00 1.2 27000 R390-040C5-18M080 40.00 15.4 6.80 0.0 3 3 50.00 80.00 40.00 3.0 9200 R390-040C6-11M080 40.00 10.0 2.00 1.0 3 4 63.00 80.00 40.00 1.2 27000 R390-040C6-18M100 40.00 15.4 6.80 0.0 3 3 63.00 100.00 50.00 3.0 9200 R390-044C4-11M060 44.00 10.0 1.80 1.0 3 4 40.00 60.00 1.2 25600 R390-044C4-11M075 44.00 10.0 1.80 1.0 3 4 40.00 75.00 1.2 25600 R390-044C4-18M060 44.00 15.4 6.00 0.0 3 3 40.00 60.00 3.0 8600 R390-044C4-18M080 44.00 15.4 6.00 0.0 3 3 40.00 80.00 3.0 8600 R390-050C5-11M060 50.00 10.0 1.50 1.0 3 5 50.00 60.00 40.00 1.2 23700 R = Right hand, L = Left hand 55
