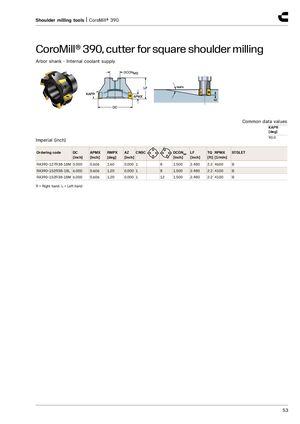

Инструмент для торцевого фрезерования | CoroMill® 390
CoroMill® 390, фреза для обработки прямоугольных торцевых канавок
Хвостовик-оправка - Внутренняя подача СОЖ
Общие значения данных: KAPR [град] = 90,0
Дюймовая система (дюймы) — продолжение
| Код заказа | DC [дюйм] | APMX [дюйм] | RMPX [град] | AZ [дюйм] | CNSC | DCONMS [дюйм] | LF [дюйм] | TQ [фунт-сила] | RPMX [об/мин] | STDLET |
|---|---|---|---|---|---|---|---|---|---|---|
| RA390-127R38-18M | 5,000 | 0,606 | 1,60 | 0,000 | 1, 8 | 1,500 | 2,480 | 2,2 | 4600 | B |
| RA390-152R38-18L | 6,000 | 0,606 | 1,20 | 0,000 | 1, 8 | 1,500 | 2,480 | 2,2 | 4100 | B |
| RA390-152R38-18M | 6,000 | 0,606 | 1,20 | 0,000 | 1, 12 | 1,500 | 2,480 | 2,2 | 4100 | B |
R = Правое вращение, L = Левое вращение
