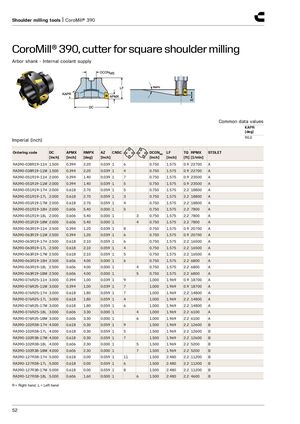

Инструмент для торцевого фрезерования | CoroMill® 390
CoroMill® 390, фреза для обработки прямоугольных торцевых канавок
Хвостовик-оправка - Внутренняя подача СОЖ
Общие значения данных: KAPR [град] = 90,0
Дюймовая система (дюймы)
| Код заказа | DC [дюйм] | APMX [дюйм] | RMPX [град] | AZ [дюйм] | CNSC | DCONMS [дюйм] | LF [дюйм] | TQ [фунт-сила] | RPMX [об/мин] | STDLET |
|---|---|---|---|---|---|---|---|---|---|---|
| RA390-038R19-11H | 1,500 | 0,394 | 2,20 | 0,039 | 1, 6 | 0,750 | 1,575 | 0,9 | 22700 | A |
| RA390-038R19-11M | 1,500 | 0,394 | 2,20 | 0,039 | 1, 4 | 0,750 | 1,575 | 0,9 | 22700 | A |
| RA390-051R19-11H | 2,000 | 0,394 | 1,40 | 0,039 | 1, 7 | 0,750 | 1,575 | 0,9 | 23500 | A |
| RA390-051R19-11M | 2,000 | 0,394 | 1,40 | 0,039 | 1, 5 | 0,750 | 1,575 | 0,9 | 23500 | A |
| RA390-051R19-17H | 2,000 | 0,618 | 2,70 | 0,059 | 1, 5 | 0,750 | 1,575 | 2,2 | 18800 | A |
| RA390-051R19-17L | 2,000 | 0,618 | 2,70 | 0,059 | 1, 3 | 0,750 | 1,575 | 2,2 | 18800 | A |
| RA390-051R19-17M | 2,000 | 0,618 | 2,70 | 0,059 | 1, 4 | 0,750 | 1,575 | 2,2 | 18800 | A |
| RA390-051R19-18H | 2,000 | 0,606 | 5,40 | 0,000 | 1, 5 | 0,750 | 1,575 | 2,2 | 7800 | A |
| RA390-051R19-18L | 2,000 | 0,606 | 5,40 | 0,000 | 1, 3 | 0,750 | 1,575 | 2,2 | 7800 | A |
| RA390-051R19-18M | 2,000 | 0,606 | 5,40 | 0,000 | 1, 4 | 0,750 | 1,575 | 2,2 | 7800 | A |
| RA390-063R19-11H | 2,500 | 0,394 | 1,20 | 0,039 | 1, 8 | 0,750 | 1,575 | 0,9 | 20700 | A |
| RA390-063R19-11M | 2,500 | 0,394 | 1,20 | 0,039 | 1, 6 | 0,750 | 1,575 | 0,9 | 20700 | A |
| RA390-063R19-17H | 2,500 | 0,618 | 2,10 | 0,059 | 1, 6 | 0,750 | 1,575 | 2,2 | 16500 | A |
| RA390-063R19-17L | 2,500 | 0,618 | 2,10 | 0,059 | 1, 4 | 0,750 | 1,575 | 2,2 | 16500 | A |
| RA390-063R19-17M | 2,500 | 0,618 | 2,10 | 0,059 | 1, 5 | 0,750 | 1,575 | 2,2 | 16500 | A |
| RA390-063R19-18H | 2,500 | 0,606 | 4,00 | 0,000 | 1, 6 | 0,750 | 1,575 | 2,2 | 6800 | A |
| RA390-063R19-18L | 2,500 | 0,606 | 4,00 | 0,000 | 1, 4 | 0,750 | 1,575 | 2,2 | 6800 | A |
| RA390-063R19-18M | 2,500 | 0,606 | 4,00 | 0,000 | 1, 5 | 0,750 | 1,575 | 2,2 | 6800 | A |
| RA390-076R25-11H | 3,000 | 0,394 | 1,00 | 0,039 | 1, 9 | 1,000 | 1,969 | 0,9 | 18700 | A |
| RA390-076R25-11M | 3,000 | 0,394 | 1,00 | 0,039 | 1, 7 | 1,000 | 1,969 | 0,9 | 18700 | A |
| RA390-076R25-17H | 3,000 | 0,618 | 1,80 | 0,059 | 1, 7 | 1,000 | 1,969 | 2,2 | 14800 | A |
| RA390-076R25-17L | 3,000 | 0,618 | 1,80 | 0,059 | 1, 4 | 1,000 | 1,969 | 2,2 | 14800 | A |
| RA390-076R25-17M | 3,000 | 0,618 | 1,80 | 0,059 | 1, 6 | 1,000 | 1,969 | 2,2 | 14800 | A |
| RA390-076R25-18L | 3,000 | 0,606 | 3,30 | 0,000 | 1, 4 | 1,000 | 1,969 | 2,2 | 6100 | A |
| RA390-076R25-18M | 3,000 | 0,606 | 3,30 | 0,000 | 1, 6 | 1,000 | 1,969 | 2,2 | 6100 | A |
| RA390-102R38-17H | 4,000 | 0,618 | 0,30 | 0,059 | 1, 9 | 1,500 | 1,969 | 2,2 | 12600 | B |
| RA390-102R38-17L | 4,000 | 0,618 | 0,30 | 0,059 | 1, 5 | 1,500 | 1,969 | 2,2 | 12600 | B |
| RA390-102R38-17M | 4,000 | 0,618 | 0,30 | 0,059 | 1, 7 | 1,500 | 1,969 | 2,2 | 12600 | B |
| RA390-102R38-18L | 4,000 | 0,606 | 2,30 | 0,000 | 1, 5 | 1,500 | 1,969 | 2,2 | 5200 | B |
| RA390-102R38-18M | 4,000 | 0,606 | 2,30 | 0,000 | 1, 7 | 1,500 | 1,969 | 2,2 | 5200 | B |
| RA390-127R38-17H | 5,000 | 0,618 | 0,00 | 0,059 | 1, 11 | 1,500 | 2,480 | 2,2 | 11200 | B |
| RA390-127R38-17L | 5,000 | 0,618 | 0,00 | 0,059 | 1, 6 | 1,500 | 2,480 | 2,2 | 11200 | B |
| RA390-127R38-17M | 5,000 | 0,618 | 0,00 | 0,059 | 1, 8 | 1,500 | 2,480 | 2,2 | 11200 | B |
| RA390-127R38-18L | 5,000 | 0,606 | 1,60 | 0,000 | 1, 6 | 1,500 | 2,480 | 2,2 | 4600 | B |
R = Правое вращение, L = Левое вращение
