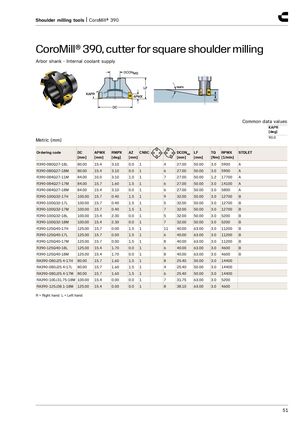

Shoulder milling tools | CoroMill® 390 CoroMill® 390, cutter for square shoulder milling Arbor shank - Internal coolant supply Common data values KAPR [deg] 90.0 Metric (mm) Ordering code DC APMX RMPX AZ CNSC DCONMS LF TQ RPMX STDLET [mm] [mm] [deg] [mm] [mm] [mm] [Nm] [1/min] R390-080Q27-18L 80.00 15.4 3.10 0.0 1 4 27.00 50.00 3.0 5900 A R390-080Q27-18M 80.00 15.4 3.10 0.0 1 6 27.00 50.00 3.0 5900 A R390-084Q27-11M 84.00 10.0 3.10 1.0 1 7 27.00 50.00 1.2 17700 A R390-084Q27-17M 84.00 15.7 1.60 1.5 1 6 27.00 50.00 3.0 14100 A R390-084Q27-18M 84.00 15.4 3.10 0.0 1 6 27.00 50.00 3.0 5800 A R390-100Q32-17H 100.00 15.7 0.40 1.5 1 9 32.00 50.00 3.0 12700 B R390-100Q32-17L 100.00 15.7 0.40 1.5 1 5 32.00 50.00 3.0 12700 B R390-100Q32-17M 100.00 15.7 0.40 1.5 1 7 32.00 50.00 3.0 12700 B R390-100Q32-18L 100.00 15.4 2.30 0.0 1 5 32.00 50.00 3.0 5200 B R390-100Q32-18M 100.00 15.4 2.30 0.0 1 7 32.00 50.00 3.0 5200 B R390-125Q40-17H 125.00 15.7 0.00 1.5 1 11 40.00 63.00 3.0 11200 B R390-125Q40-17L 125.00 15.7 0.00 1.5 1 6 40.00 63.00 3.0 11200 B R390-125Q40-17M 125.00 15.7 0.00 1.5 1 8 40.00 63.00 3.0 11200 B R390-125Q40-18L 125.00 15.4 1.70 0.0 1 6 40.00 63.00 3.0 4600 B R390-125Q40-18M 125.00 15.4 1.70 0.0 1 8 40.00 63.00 3.0 4600 B RA390-080J25.4-17H 80.00 15.7 1.60 1.5 1 8 25.40 50.00 3.0 14400 RA390-080J25.4-17L 80.00 15.7 1.60 1.5 1 4 25.40 50.00 3.0 14400 RA390-080J25.4-17M 80.00 15.7 1.60 1.5 1 6 25.40 50.00 3.0 14400 RA390-100J31.75-18M 100.00 15.4 0.00 0.0 1 7 31.75 63.00 3.0 5200 RA390-125J38.1-18M 125.00 15.4 0.00 0.0 1 8 38.10 63.00 3.0 4600 R = Right hand, L = Left hand 51
