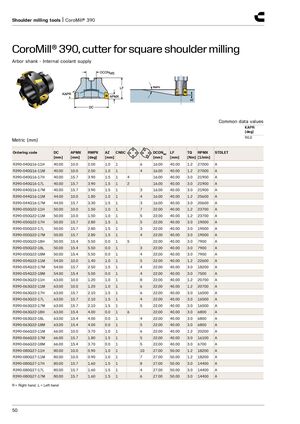

Инструмент для торцевого фрезерования | CoroMill® 390
CoroMill® 390, фреза для обработки прямоугольных торцевых канавок
Хвостовик-оправка - Внутренняя подача СОЖ
Общие значения данных: KAPR [град] = 90,0
Метрическая система (мм)
| Код заказа | DC [мм] | APMX [мм] | RMPX [град] | AZ [мм] | CNSC | DCONMS [мм] | LF [мм] | TQ [Нм] | RPMX [об/мин] | STDLET |
|---|---|---|---|---|---|---|---|---|---|---|
| R390-040Q16-11H | 40,00 | 10,0 | 2,00 | 1,0 | 1, 6 | 16,00 | 40,00 | 1,2 | 27000 | A |
| R390-040Q16-11M | 40,00 | 10,0 | 2,00 | 1,0 | 1, 4 | 16,00 | 40,00 | 1,2 | 27000 | A |
| R390-040Q16-17H | 40,00 | 15,7 | 3,90 | 1,5 | 1, 4 | 16,00 | 40,00 | 3,0 | 21900 | A |
| R390-040Q16-17L | 40,00 | 15,7 | 3,90 | 1,5 | 1, 2 | 16,00 | 40,00 | 3,0 | 21900 | A |
| R390-040Q16-17M | 40,00 | 15,7 | 3,90 | 1,5 | 1, 3 | 16,00 | 40,00 | 3,0 | 21900 | A |
| R390-044Q16-11M | 44,00 | 10,0 | 1,80 | 1,0 | 1, 4 | 16,00 | 40,00 | 1,2 | 25600 | A |
| R390-044Q16-17M | 44,00 | 15,7 | 3,30 | 1,5 | 1, 3 | 16,00 | 40,00 | 3,0 | 20600 | A |
| R390-050Q22-11H | 50,00 | 10,0 | 1,50 | 1,0 | 1, 7 | 22,00 | 40,00 | 1,2 | 23700 | A |
| R390-050Q22-11M | 50,00 | 10,0 | 1,50 | 1,0 | 1, 5 | 22,00 | 40,00 | 1,2 | 23700 | A |
| R390-050Q22-17H | 50,00 | 15,7 | 2,80 | 1,5 | 1, 5 | 22,00 | 40,00 | 3,0 | 19000 | A |
| R390-050Q22-17L | 50,00 | 15,7 | 2,80 | 1,5 | 1, 3 | 22,00 | 40,00 | 3,0 | 19000 | A |
| R390-050Q22-17M | 50,00 | 15,7 | 2,80 | 1,5 | 1, 4 | 22,00 | 40,00 | 3,0 | 19000 | A |
| R390-050Q22-18H | 50,00 | 15,4 | 5,50 | 0,0 | 1, 5 | 22,00 | 40,00 | 3,0 | 7900 | A |
| R390-050Q22-18L | 50,00 | 15,4 | 5,50 | 0,0 | 1, 3 | 22,00 | 40,00 | 3,0 | 7900 | A |
| R390-050Q22-18M | 50,00 | 15,4 | 5,50 | 0,0 | 1, 4 | 22,00 | 40,00 | 3,0 | 7900 | A |
| R390-054Q22-11M | 54,00 | 10,0 | 1,40 | 1,0 | 1, 5 | 22,00 | 40,00 | 1,2 | 22600 | A |
| R390-054Q22-17M | 54,00 | 15,7 | 2,50 | 1,5 | 1, 4 | 22,00 | 40,00 | 3,0 | 18200 | A |
| R390-054Q22-18M | 54,00 | 15,4 | 5,00 | 0,0 | 1, 4 | 22,00 | 40,00 | 3,0 | 7500 | A |
| R390-063Q22-11H | 63,00 | 10,0 | 1,20 | 1,0 | 1, 8 | 22,00 | 40,00 | 1,2 | 20700 | A |
| R390-063Q22-11M | 63,00 | 10,0 | 1,20 | 1,0 | 1, 6 | 22,00 | 40,00 | 1,2 | 20700 | A |
| R390-063Q22-17H | 63,00 | 15,7 | 2,10 | 1,5 | 1, 6 | 22,00 | 40,00 | 3,0 | 16500 | A |
| R390-063Q22-17L | 63,00 | 15,7 | 2,10 | 1,5 | 1, 4 | 22,00 | 40,00 | 3,0 | 16500 | A |
| R390-063Q22-17M | 63,00 | 15,7 | 2,10 | 1,5 | 1, 5 | 22,00 | 40,00 | 3,0 | 16500 | A |
| R390-063Q22-18H | 63,00 | 15,4 | 4,00 | 0,0 | 1, 6 | 22,00 | 40,00 | 3,0 | 6800 | A |
| R390-063Q22-18L | 63,00 | 15,4 | 4,00 | 0,0 | 1, 4 | 22,00 | 40,00 | 3,0 | 6800 | A |
| R390-063Q22-18M | 63,00 | 15,4 | 4,00 | 0,0 | 1, 5 | 22,00 | 40,00 | 3,0 | 6800 | A |
| R390-066Q22-11M | 66,00 | 10,0 | 3,70 | 1,0 | 1, 6 | 22,00 | 40,00 | 1,2 | 20200 | A |
| R390-066Q22-17M | 66,00 | 15,7 | 1,80 | 1,5 | 1, 5 | 22,00 | 40,00 | 3,0 | 16100 | A |
| R390-066Q22-18M | 66,00 | 15,4 | 3,70 | 0,0 | 1, 5 | 22,00 | 40,00 | 3,0 | 6700 | A |
| R390-080Q27-11H | 80,00 | 10,0 | 0,90 | 1,0 | 1, 10 | 27,00 | 50,00 | 1,2 | 18200 | A |
| R390-080Q27-11M | 80,00 | 10,0 | 0,90 | 1,0 | 1, 7 | 27,00 | 50,00 | 1,2 | 18200 | A |
| R390-080Q27-17H | 80,00 | 15,7 | 1,60 | 1,5 | 1, 8 | 27,00 | 50,00 | 3,0 | 14400 | A |
| R390-080Q27-17L | 80,00 | 15,7 | 1,60 | 1,5 | 1, 4 | 27,00 | 50,00 | 3,0 | 14400 | A |
| R390-080Q27-17M | 80,00 | 15,7 | 1,60 | 1,5 | 1, 6 | 27,00 | 50,00 | 3,0 | 14400 | A |
R = Правое вращение, L = Левое вращение
