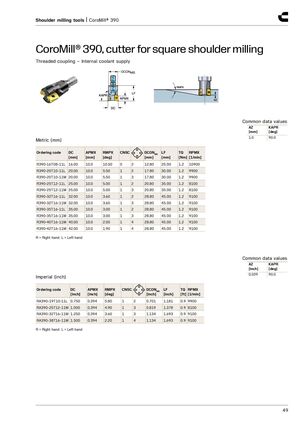

Инструмент для торцевого фрезерования | CoroMill® 390
CoroMill® 390, фреза для обработки прямоугольных торцевых канавок
Резьбовое соединение - Внутренняя подача СОЖ
Общие значения данных: AZ [мм] = 1,0; KAPR [град] = 90,0
Метрическая система (мм)
| Код заказа | DC [мм] | APMX [мм] | RMPX [град] | CNSC | DCONMS [мм] | LF [мм] | TQ [Нм] | RPMX [об/мин] |
|---|---|---|---|---|---|---|---|---|
| R390-16T08-11L | 16,00 | 10,0 | 10,50 | 0, 2 | 12,80 | 25,00 | 1,2 | 10900 |
| R390-20T10-11L | 20,00 | 10,0 | 5,50 | 1, 2 | 17,80 | 30,00 | 1,2 | 9900 |
| R390-20T10-11M | 20,00 | 10,0 | 5,50 | 1, 3 | 17,80 | 30,00 | 1,2 | 9900 |
| R390-25T12-11L | 25,00 | 10,0 | 5,00 | 1, 2 | 20,80 | 35,00 | 1,2 | 8100 |
| R390-25T12-11M | 25,00 | 10,0 | 5,00 | 1, 3 | 20,80 | 35,00 | 1,2 | 8100 |
| R390-32T16-11L | 32,00 | 10,0 | 3,60 | 1, 2 | 28,80 | 45,00 | 1,2 | 9100 |
| R390-32T16-11M | 32,00 | 10,0 | 3,60 | 1, 3 | 28,80 | 45,00 | 1,2 | 9100 |
| R390-35T16-11L | 35,00 | 10,0 | 3,00 | 1, 2 | 28,80 | 45,00 | 1,2 | 9100 |
| R390-35T16-11M | 35,00 | 10,0 | 3,00 | 1, 3 | 28,80 | 45,00 | 1,2 | 9100 |
| R390-40T16-11M | 40,00 | 10,0 | 2,00 | 1, 4 | 28,80 | 45,00 | 1,2 | 9100 |
| R390-42T16-11M | 42,00 | 10,0 | 1,90 | 1, 4 | 28,80 | 45,00 | 1,2 | 9100 |
R = Правое вращение, L = Левое вращение
Общие значения данных: AZ [дюйм] = 0,039; KAPR [град] = 90,0
Дюймовая система (дюймы)
| Код заказа | DC [дюйм] | APMX [дюйм] | RMPX [град] | CNSC | DCONMS [дюйм] | LF [дюйм] | TQ [фунт-сила] | RPMX [об/мин] |
|---|---|---|---|---|---|---|---|---|
| RA390-19T10-11L | 0,750 | 0,394 | 5,80 | 1, 2 | 0,701 | 1,181 | 0,9 | 9900 |
| RA390-25T12-11M | 1,000 | 0,394 | 4,90 | 1, 3 | 0,819 | 1,378 | 0,9 | 8100 |
| RA390-32T16-11M | 1,250 | 0,394 | 3,60 | 1, 3 | 1,134 | 1,693 | 0,9 | 9100 |
| RA390-38T16-11M | 1,500 | 0,394 | 2,20 | 1, 4 | 1,134 | 1,693 | 0,9 | 9100 |
R = Правое вращение, L = Левое вращение
