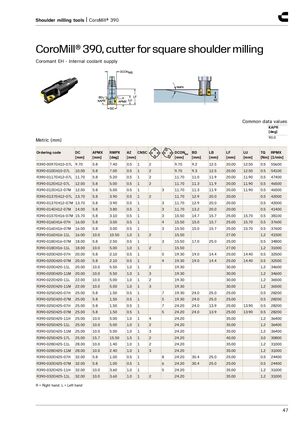

Shoulder milling tools | CoroMill® 390 CoroMill® 390, cutter for square shoulder milling​​ Coromant EH - Internal coolant supply Common data values KAPR [deg] 90.0 Metric (mm) Ordering code DC APMX RMPX AZ CNSC DCONMS BD LB LF LU TQ RPMX [mm] [mm] [deg] [mm] [mm] [mm] [mm] [mm] [mm] [Nm] [1/min] R390-0097EH10-07L 9.70 5.8 7.40 0.5 1 2 9.70 9.2 12.5 20.00 12.50 0.5 55600 R390-010EH10-07L 10.00 5.8 7.00 0.5 1 2 9.70 9.3 12.5 20.00 12.50 0.5 54100 R390-0117EH12-07L 11.70 5.8 5.20 0.5 1 2 11.70 11.0 11.9 20.00 11.90 0.5 47400 R390-012EH12-07L 12.00 5.8 5.00 0.5 1 2 11.70 11.3 11.9 20.00 11.90 0.5 46500 R390-012EH12-07M 12.00 5.8 5.00 0.5 1 3 11.70 11.3 11.9 20.00 11.90 0.5 46500 R390-0137EH12-07L 13.70 5.8 3.90 0.5 1 2 11.70 12.9 20.0 20.00 0.5 42000 R390-0137EH12-07M 13.70 5.8 3.90 0.5 1 3 11.70 12.9 20.0 20.00 0.5 42000 R390-014EH12-07M 14.00 5.8 3.80 0.5 1 3 11.70 13.2 20.0 20.00 0.5 41400 R390-0157EH16-07M 15.70 5.8 3.10 0.5 1 3 15.50 14.7 15.7 25.00 15.70 0.5 38100 R390-016EH16-07H 16.00 5.8 3.00 0.5 1 4 15.50 15.0 15.7 25.00 15.70 0.5 37600 R390-016EH16-07M 16.00 5.8 3.00 0.5 1 3 15.50 15.0 15.7 25.00 15.70 0.5 37600 R390-016EH16-11L 16.00 10.0 10.50 1.0 1 2 15.50 27.00 1.2 41500 R390-018EH16-07M 18.00 5.8 2.50 0.5 1 3 15.50 17.0 25.0 25.00 0.5 34800 R390-018EH16-11L 18.00 10.0 5.00 1.0 1 2 15.50 27.00 1.2 31000 R390-020EH20-07H 20.00 5.8 2.10 0.5 1 5 19.30 19.0 14.4 25.00 14.40 0.5 32500 R390-020EH20-07M 20.00 5.8 2.10 0.5 1 4 19.30 19.0 14.4 25.00 14.40 0.5 32500 R390-020EH20-11L 20.00 10.0 5.50 1.0 1 2 19.30 30.00 1.2 34600 R390-020EH20-11M 20.00 10.0 5.50 1.0 1 3 19.30 30.00 1.2 34600 R390-022EH20-11L 22.00 10.0 5.00 1.0 1 2 19.30 30.00 1.2 36500 R390-022EH20-11M 22.00 10.0 5.00 1.0 1 3 19.30 30.00 1.2 36500 R390-025EH20-07H 25.00 5.8 1.50 0.5 1 7 19.30 24.0 25.0 25.00 0.5 28200 R390-025EH20-07M 25.00 5.8 1.50 0.5 1 5 19.30 24.0 25.0 25.00 0.5 28200 R390-025EH25-07H 25.00 5.8 1.50 0.5 1 7 24.20 24.0 13.9 25.00 13.90 0.5 28200 R390-025EH25-07M 25.00 5.8 1.50 0.5 1 5 24.20 24.0 13.9 25.00 13.90 0.5 28200 R390-025EH25-11H 25.00 10.0 5.00 1.0 1 4 24.20 35.00 1.2 36400 R390-025EH25-11L 25.00 10.0 5.00 1.0 1 2 24.20 35.00 1.2 36400 R390-025EH25-11M 25.00 10.0 5.00 1.0 1 3 24.20 35.00 1.2 36400 R390-025EH25-17L 25.00 15.7 15.50 1.5 1 2 24.20 40.00 3.0 30800 R390-028EH25-11L 28.00 10.0 1.40 1.0 1 2 24.20 35.00 1.2 31000 R390-028EH25-11M 28.00 10.0 2.40 1.0 1 3 24.20 35.00 1.2 31000 R390-032EH25-07H 32.00 5.8 1.00 0.5 1 8 24.20 30.4 25.0 25.00 0.5 24400 R390-032EH25-07M 32.00 5.8 1.00 0.5 1 6 24.20 30.4 25.0 25.00 0.5 24400 R390-032EH25-11H 32.00 10.0 3.60 1.0 1 5 24.20 35.00 1.2 31000 R390-032EH25-11L 32.00 10.0 3.60 1.0 1 2 24.20 35.00 1.2 31000 R = Right hand, L = Left hand 47
