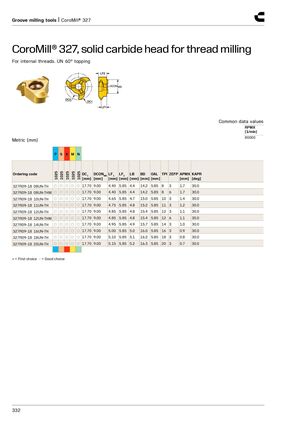

CoroMill® 327, solid carbide head for thread milling
For internal threads. UN 60° topping
Common data values
RPMX [1/min] Metric (mm) 80000
| P | S | K | M | N | |||||||||||||
| Ordering code | 1025 | 1025 | 1025 | 1025 | 1025 | DC1 [mm] | DCONMS [mm] | LF1 [mm] | LF2 [mm] | LB [mm] | BD [mm] | OAL [mm] | TPI | ZEFP | APMX [mm] | KAPR [deg] | |
| 327R09-18 08UN-TH | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 4.40 | 5.85 | 4.4 | 14.2 | 5.85 | 8 | 3 | 1.7 | 30.0 | |
| 327R09-18 08UN-THM | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 4.40 | 5.85 | 4.4 | 14.2 | 5.85 | 8 | 6 | 1.7 | 30.0 | |
| 327R09-18 10UN-TH | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 4.65 | 5.85 | 4.7 | 15.0 | 5.85 | 10 | 3 | 1.4 | 30.0 | |
| 327R09-18 11UN-TH | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 4.75 | 5.85 | 4.8 | 15.2 | 5.85 | 11 | 3 | 1.2 | 30.0 | |
| 327R09-18 12UN-TH | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 4.85 | 5.85 | 4.8 | 15.4 | 5.85 | 12 | 3 | 1.1 | 30.0 | |
| 327R09-18 12UN-THM | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 4.85 | 5.85 | 4.8 | 15.4 | 5.85 | 12 | 6 | 1.1 | 30.0 | |
| 327R09-18 14UN-TH | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 4.95 | 5.85 | 4.9 | 15.7 | 5.85 | 14 | 3 | 1.0 | 30.0 | |
| 327R09-18 16UN-TH | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 5.00 | 5.85 | 5.0 | 16.0 | 5.85 | 16 | 3 | 0.9 | 30.0 | |
| 327R09-18 18UN-TH | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 5.10 | 5.85 | 5.1 | 16.2 | 5.85 | 18 | 3 | 0.8 | 30.0 | |
| 327R09-18 20UN-TH | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 5.15 | 5.85 | 5.2 | 16.3 | 5.85 | 20 | 3 | 0.7 | 30.0 |
- = First choice = Good choice
