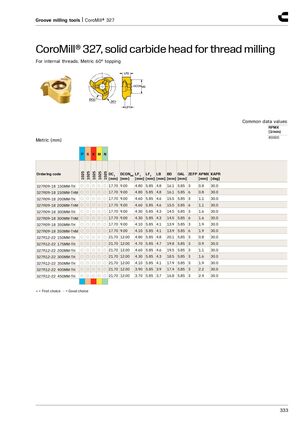

CoroMill® 327, solid carbide head for thread milling
For internal threads. Metric 60° topping
Common data values
RPMX [1/min] Metric (mm) 80000
| P | S | K | M | N | |||||||||||
| Ordering code | 1025 | 1025 | 1025 | 1025 | 1025 | DC1 [mm] | DCONMS [mm] | LF1 [mm] | LF2 [mm] | LB [mm] | BD [mm] | OAL [mm] | ZEFP | APMX [mm] | KAPR [deg] |
| 327R09-18 150MM-TH | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 4.80 | 5.85 | 4.8 | 16.1 | 5.85 | 3 | 0.8 | 30.0 |
| 327R09-18 150MM-THM | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 4.80 | 5.85 | 4.8 | 16.1 | 5.85 | 6 | 0.8 | 30.0 |
| 327R09-18 200MM-TH | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 4.60 | 5.85 | 4.6 | 15.5 | 5.85 | 3 | 1.1 | 30.0 |
| 327R09-18 200MM-THM | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 4.60 | 5.85 | 4.6 | 15.5 | 5.85 | 6 | 1.1 | 30.0 |
| 327R09-18 300MM-TH | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 4.30 | 5.85 | 4.3 | 14.5 | 5.85 | 3 | 1.6 | 30.0 |
| 327R09-18 300MM-THM | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 4.30 | 5.85 | 4.3 | 14.5 | 5.85 | 6 | 1.6 | 30.0 |
| 327R09-18 350MM-TH | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 4.10 | 5.85 | 4.1 | 13.9 | 5.85 | 3 | 1.9 | 30.0 |
| 327R09-18 350MM-THM | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 4.10 | 5.85 | 4.1 | 13.9 | 5.85 | 6 | 1.9 | 30.0 |
| 327R12-22 150MM-TH | ○ | ○ | ○ | ○ | ○ | 21.70 | 12.00 | 4.80 | 5.85 | 4.8 | 20.1 | 5.85 | 3 | 0.8 | 30.0 |
| 327R12-22 175MM-TH | ○ | ○ | ○ | ○ | ○ | 21.70 | 12.00 | 4.70 | 5.85 | 4.7 | 19.8 | 5.85 | 3 | 0.9 | 30.0 |
| 327R12-22 200MM-TH | ○ | ○ | ○ | ○ | ○ | 21.70 | 12.00 | 4.60 | 5.85 | 4.6 | 19.5 | 5.85 | 3 | 1.1 | 30.0 |
| 327R12-22 300MM-TH | ○ | ○ | ○ | ○ | ○ | 21.70 | 12.00 | 4.30 | 5.85 | 4.3 | 18.5 | 5.85 | 3 | 1.6 | 30.0 |
| 327R12-22 350MM-TH | ○ | ○ | ○ | ○ | ○ | 21.70 | 12.00 | 4.10 | 5.85 | 4.1 | 17.9 | 5.85 | 3 | 1.9 | 30.0 |
| 327R12-22 400MM-TH | ○ | ○ | ○ | ○ | ○ | 21.70 | 12.00 | 3.90 | 5.85 | 3.9 | 17.4 | 5.85 | 3 | 2.2 | 30.0 |
| 327R12-22 450MM-TH | ○ | ○ | ○ | ○ | ○ | 21.70 | 12.00 | 3.70 | 5.85 | 3.7 | 16.8 | 5.85 | 3 | 2.4 | 30.0 |
- = First choice = Good choice
