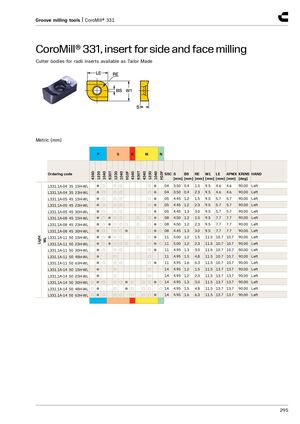

CoroMill® 331, insert for side and face milling
Cutter bodies for radii inserts available as Tailor Made
Metric (mm)
| P | S | K | M | N | ||||||||||||
| Ordering code | 4340 1230 1040 | S30T 1230 1040 | H10F | 4340 S30T | 4340 1230 | 1040 | H10F SSC | S [mm] | BS [mm | ] RE [mm | ] W1 [mm] | LE [mm] | APMX [mm] | KRINS [deg] | HAND | |
| L331.1A-04 35 15H-WL | ●○ | ○○ | ○ | ● | 04 | 3.50 | 0.4 | 1.5 | 9.5 | 4.6 | 4.6 | 90.00 | Left | |||
| L331.1A-04 35 23H-WL | ●○ | ○○ | ○ | ● | 04 | 3.50 | 0.4 | 2.3 | 9.5 | 4.6 | 4.6 | 90.00 | Left | |||
| L331.1A-05 45 15H-WL | ●○ | ○○ | ○ | ● | 05 | 4.45 | 1.2 | 1.5 | 9.5 | 5.7 | 5.7 | 90.00 | Left | |||
| L331.1A-05 45 23H-WL | ●○ | ○○ | ○ | ● | 05 | 4.45 | 1.2 | 2.3 | 9.5 | 5.7 | 5.7 | 90.00 | Left | |||
| L331.1A-05 45 30H-WL | ●○ | ○○ | ○ | ● | 05 | 4.45 | 1.3 | 3.0 | 9.5 | 5.7 | 5.7 | 90.00 | Left | |||
| L331.1A-08 45 15H-WL | ●○ | ●○○ | ○ | ○ | ● | 08 | 4.50 | 1.2 | 1.5 | 9.5 | 7.7 | 7.7 | 90.00 | Left | ||
| L331.1A-08 45 23H-WL | ●○ | ●○○ | ○ | ○ | ○ | ● | ○08 | 4.50 | 1.2 | 2.3 | 9.5 | 7.7 | 7.7 | 90.00 | Left | |
| L331.1A-08 45 30H-WL | ●○ | ○○ | ● | ○ | ● | ○08 | 4.45 | 1.3 | 3.0 | 9.5 | 7.7 | 7.7 | 90.00 | Left | ||
| ght L L331.1A-11 50 15H-WL | ●○ | ●○○ | ○ | ○ | ● | 11 | 5.00 | 1.2 | 1.5 | 11.5 | 10.7 | 10.7 | 90.00 | Left | ||
| Li W L331.1A-11 50 23H-WL | ●○ | ●○○ | ○ | ○ | ○ | ● | ○11 | 5.00 | 1.2 | 2.3 | 11.5 | 10.7 | 10.7 | 90.00 | Left | |
| L331.1A-11 50 30H-WL | ●○ | ○○ | ○ | ● | 11 | 4.95 | 1.3 | 3.0 | 11.5 | 10.7 | 10.7 | 90.00 | Left | |||
| L331.1A-11 50 48H-WL | ● | ○ | ○ | 11 | 4.95 | 1.5 | 4.8 | 11.5 | 10.7 | 10.7 | 90.00 | Left | ||||
| L331.1A-11 50 63H-WL | ●○ | ○○ | ○ | ● | 11 | 4.95 | 1.6 | 6.3 | 11.5 | 10.7 | 10.7 | 90.00 | Left | |||
| L331.1A-14 50 15H-WL | ● | ○ | ○ | 14 | 4.95 | 1.2 | 1.5 | 11.5 | 13.7 | 13.7 | 90.00 | Left | ||||
| L331.1A-14 50 23H-WL | ● | ○ | ○ | 14 | 4.95 | 1.2 | 2.3 | 11.5 | 13.7 | 13.7 | 90.00 | Left | ||||
| L331.1A-14 50 30H-WL | ○●○ | ○○ | ● | ○ | ○○ | ● | ○14 | 4.95 | 1.3 | 3.0 | 11.5 | 13.7 | 13.7 | 90.00 | Left | |
| L331.1A-14 50 48H-WL | ○● | ○ | ● | ○ | ○○ | ○14 | 4.95 | 1.5 | 4.8 | 11.5 | 13.7 | 13.7 | 90.00 | Left | ||
| L331.1A-14 50 63H-WL | ○●○ | ○○ | ○ | ○○ | ● | 14 | 4.95 | 1.6 | 6.3 | 11.5 | 13.7 | 13.7 | 90.00 | Left |
