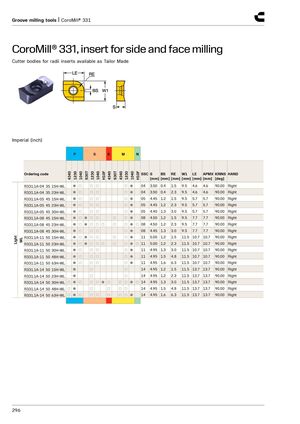

CoroMill® 331, insert for side and face milling
Cutter bodies for radii inserts available as Tailor Made
Imperial (inch)
| P | S | K | M | N | ||||||||||
| Ordering code | 4340 1230 1040 | S30T 1230 | 1040 | H10F 4340 S30T | 4340 1230 1040 | H10F SSC | S [mm] | BS [mm | ] RE [mm | ] W1 [mm] | LE [mm] | APMX [mm] | KRINS [deg] | HAND |
| R331.1A-04 35 15H-WL | ●○ | ○ | ○ | ○● | 04 | 3.50 | 0.4 | 1.5 | 9.5 | 4.6 | 4.6 | 90.00 | Right | |
| R331.1A-04 35 23H-WL | ●○ | ○ | ○ | ○● | 04 | 3.50 | 0.4 | 2.3 | 9.5 | 4.6 | 4.6 | 90.00 | Right | |
| R331.1A-05 45 15H-WL | ●○ | ○ | ○ | ○● | 05 | 4.45 | 1.2 | 1.5 | 9.5 | 5.7 | 5.7 | 90.00 | Right | |
| R331.1A-05 45 23H-WL | ●○ | ○ | ○ | ○● | 05 | 4.45 | 1.2 | 2.3 | 9.5 | 5.7 | 5.7 | 90.00 | Right | |
| R331.1A-05 45 30H-WL | ●○ | ○ | ○ | ○● | 05 | 4.45 | 1.3 | 3.0 | 9.5 | 5.7 | 5.7 | 90.00 | Right | |
| R331.1A-08 45 15H-WL | ●○ | ●○ | ○ | ○ | ○● | 08 | 4.50 | 1.2 | 1.5 | 9.5 | 7.7 | 7.7 | 90.00 | Right |
| R331.1A-08 45 23H-WL | ●○ | ●○ | ○ | ○ ○ | ○● | ○08 | 4.50 | 1.2 | 2.3 | 9.5 | 7.7 | 7.7 | 90.00 | Right |
| R331.1A-08 45 30H-WL | ●○ | ○ | ○ | ○● | 08 | 4.45 | 1.3 | 3.0 | 9.5 | 7.7 | 7.7 | 90.00 | Right | |
| ght L R331.1A-11 50 15H-WL | ●○ | ●○ | ○ | ○ | ○● | 11 | 5.00 | 1.2 | 1.5 | 11.5 | 10.7 | 10.7 | 90.00 | Right |
| Li W R331.1A-11 50 23H-WL | ●○ | ●○ | ○ | ○ ○ | ○● | ○11 | 5.00 | 1.2 | 2.3 | 11.5 | 10.7 | 10.7 | 90.00 | Right |
| R331.1A-11 50 30H-WL | ●○ | ○ | ○ | ○● | 11 | 4.95 | 1.3 | 3.0 | 11.5 | 10.7 | 10.7 | 90.00 | Right | |
| R331.1A-11 50 48H-WL | ●○ | ○ | ○ | ○● | 11 | 4.95 | 1.5 | 4.8 | 11.5 | 10.7 | 10.7 | 90.00 | Right | |
| R331.1A-11 50 63H-WL | ●○ | ○ | ○ | ○● | 11 | 4.95 | 1.6 | 6.3 | 11.5 | 10.7 | 10.7 | 90.00 | Right | |
| R331.1A-14 50 15H-WL | ● | ○ | ○ | 14 | 4.95 | 1.2 | 1.5 | 11.5 | 13.7 | 13.7 | 90.00 | Right | ||
| R331.1A-14 50 23H-WL | ● | ○ | ○ | 14 | 4.95 | 1.2 | 2.3 | 11.5 | 13.7 | 13.7 | 90.00 | Right | ||
| R331.1A-14 50 30H-WL | ○●○ | ○ | ○ | ●○ | ○○● | ○14 | 4.95 | 1.3 | 3.0 | 11.5 | 13.7 | 13.7 | 90.00 | Right |
| R331.1A-14 50 48H-WL | ○● | ○ | ○ | ○○ | 14 | 4.95 | 1.5 | 4.8 | 11.5 | 13.7 | 13.7 | 90.00 | Right | |
| R331.1A-14 50 63H-WL | ○●○ | ○ | ○ | ○ | ○○● | 14 | 4.95 | 1.6 | 6.3 | 11.5 | 13.7 | 13.7 | 90.00 | Right |
