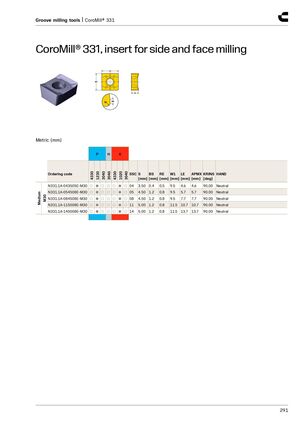

CoroMill® 331, insert for side and face milling
Metric (mm)
P H K
| Ordering code | SSC S | BS RE | W1 | LE | APMX KRINS HAND | ||
| [mm] [mm] [mm] [mm] [mm] [mm] | [deg] | ||||||
| N331.1A-043505E-M30 | 04 | 3.50 0.4 | 0.5 | 9.5 | 4.6 | 4.6 | 90.00 Neutral |
| N331.1A-054508E-M30 | 05 | 4.50 1.2 | 0.8 | 9.5 | 5.7 | 5.7 | 90.00 Neutral |
| N331.1A-084508E-M30 | 08 | 4.50 1.2 | 0.8 | 9.5 | 7.7 | 7.7 | 90.00 Neutral |
| N331.1A-115008E-M30 | 11 | 5.00 1.2 | 0.8 | 11.5 10.7 10.7 | 90.00 Neutral | ||
| N331.1A-145008E-M30 | 14 | 5.00 1.2 | 0.8 | 11.5 13.7 13.7 | 90.00 Neutral |
