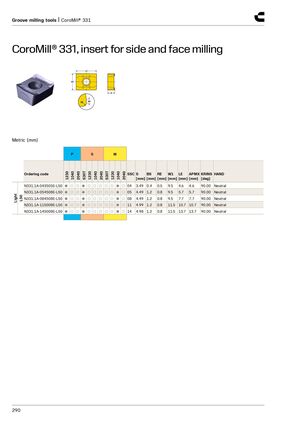

CoroMill® 331, insert for side and face milling
Metric (mm)
| P | S | M | ||||||||||||||||||||||
| Ordering code | 1230 | 1040 | 2040 | S30T | 1230 | 1040 | 2040 | S30T | 1230 | 1040 | 2040 | SSC | S [mm] | BS [mm] | RE [mm] | W1 [mm] | LE [mm] | APMX [mm] | KRINS [deg] | HAND | ||||
| N331.1A-043505E-L50 | ● | ○ | ○ | ● | ○ | ○ | ○ | ○ | ○ | ● | ○ | 04 | 3.49 | 0.4 | 0.5 | 9.5 | 4.6 | 4.6 | 90.00 | Neutral | ||||
| t | N331.1A-054508E-L50 | ● | ○ | ○ | ● | ○ | ○ | ○ | ○ | ○ | ● | ○ | 05 | 4.49 | 1.2 | 0.8 | 9.5 | 5.7 | 5.7 | 90.00 | Neutral | |||
| Ligh L50 | N331.1A-084508E-L50 | ● | ○ | ○ | ● | ○ | ○ | ○ | ○ | ○ | ● | ○ | 08 | 4.49 | 1.2 | 0.8 | 9.5 | 7.7 | 7.7 | 90.00 | Neutral | |||
| N331.1A-115008E-L50 | ● | ○ | ○ | ● | ○ | ○ | ○ | ○ | ○ | ● | ○ | 11 | 4.99 | 1.2 | 0.8 | 11.5 | 10.7 | 10.7 | 90.00 | Neutral | ||||
| N331.1A-145008E-L50 | ● | ○ | ○ | ● | ○ | ○ | ○ | ○ | ○ | ● | ○ | 14 | 4.98 | 1.2 | 0.8 | 11.5 | 13.7 | 13.7 | 90.00 | Neutral |
