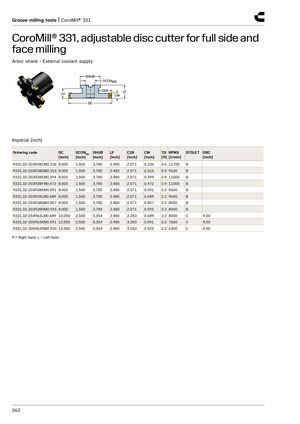

face milling
Arbor shank - External coolant supply
Imperial (inch)
| Ordering code | DC [inch] | DCONMS [inch] | DHUB [inch] | LF [inch] | CDX [inch] | CW [inch] | TQ [ft] RPMX [1/min] | STDLET | DBC [inch] |
| R331.32-203R38CM0.236 | 8.000 | 1.500 | 3.780 | 2.480 | 2.071 | 0.236 | 0.6 11700 | B | |
| R331.32-203R38DM0.315 | 8.000 | 1.500 | 3.780 | 2.482 | 2.071 | 0.315 | 0.9 9100 | B | |
| R331.32-203R38EM0.394 | 8.000 | 1.500 | 3.780 | 2.480 | 2.071 | 0.394 | 0.9 11000 | B | |
| R331.32-203R38FM0.472 | 8.000 | 1.500 | 3.780 | 2.480 | 2.071 | 0.472 | 0.9 11000 | B | |
| R331.32-203R38KM0.591 | 8.000 | 1.500 | 3.780 | 2.480 | 2.071 | 0.591 | 2.2 9600 | B | |
| R331.32-203R38LM0.689 | 8.000 | 1.500 | 3.780 | 2.480 | 2.071 | 0.689 | 2.2 9600 | B | |
| R331.32-203R38QM0.807 | 8.000 | 1.500 | 3.780 | 2.480 | 2.071 | 0.807 | 2.2 8000 | B | |
| R331.32-203R38RM0.925 | 8.000 | 1.500 | 3.780 | 2.480 | 2.071 | 0.925 | 2.2 8000 | B | |
| R331.32-254R63LM0.689 | 10.000 | 2.500 | 5.354 | 2.480 | 2.283 | 0.689 | 2.2 8500 | C | 4.00 |
| R331.32-305R63KM0.591 | 12.000 | 2.500 | 5.354 | 2.480 | 3.283 | 0.591 | 2.2 7600 | C | 4.00 |
| R331.32-305R63RM0.925 | 12.000 | 2.500 | 5.354 | 2.480 | 3.283 | 0.925 | 2.2 6300 | C | 4.00 |
R = Right hand, L = Left hand
