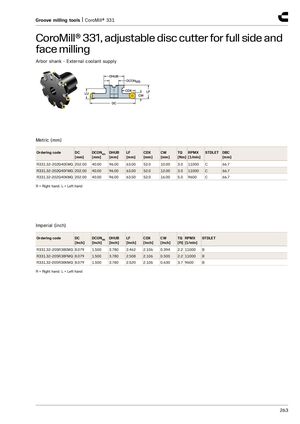

face milling
Arbor shank - External coolant supply
Metric (mm)
| Ordering code | DC | DCONMS | DHUB | LF | CDX | CW | TQ | RPMX | STDLET | DBC |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Nm] | [1/min] | [mm] | ||
| R331.32-202Q40EMQ | 202.00 | 40.00 | 96.00 | 63.00 | 52.0 | 10.00 | 3.0 | 11000 | C | 66.7 |
| R331.32-202Q40FMQ | 202.00 | 40.00 | 96.00 | 63.00 | 52.0 | 12.00 | 3.0 | 11000 | C | 66.7 |
| R331.32-202Q40KMQ | 202.00 | 40.00 | 96.00 | 63.50 | 52.0 | 16.00 | 5.0 | 9600 | C | 66.7 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | DC | DCONMS | DHUB | LF | CDX | CW | TQ | RPMX | STDLET |
| [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [ft] | [1/min] | ||
| R331.32-205R38EMQ | 8.079 | 1.500 | 3.780 | 2.462 | 2.106 | 0.394 | 2.2 | 11000 | B |
| R331.32-205R38FMQ | 8.079 | 1.500 | 3.780 | 2.508 | 2.106 | 0.500 | 2.2 | 11000 | B |
| R331.32-205R38KMQ | 8.079 | 1.500 | 3.780 | 2.520 | 2.106 | 0.630 | 3.7 | 9600 | B |
R = Right hand, L = Left hand
