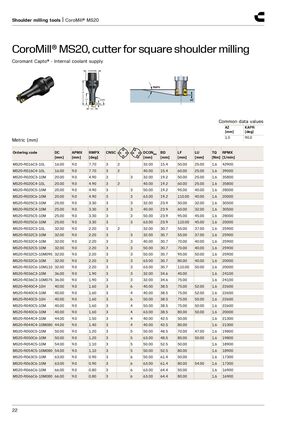

Инструменты для фрезерования уступов | CoroMill® MS20
CoroMill® MS20, фреза для фрезерования прямоугольных уступов
Coromant Capto® - Внутренняя подача СОЖ
Стандартные значения параметров:
AZ: 1.0 [мм], KAPR: 90.0 [град]
Метрические размеры (мм)
| Артикул | DC [мм] | APMX [мм] | RMPX [град] | CNSC | DCONMS [мм] | BD [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [1/мин] | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MS20-R016C3-10L | 16.00 | 9.0 | 7.70 | 3 | 2 | 32.00 | 15.4 | 50.00 | 25.00 | 1.6 | 42900 |
| MS20-R016C4-10L | 16.00 | 9.0 | 7.70 | 3 | 2 | 40.00 | 15.4 | 60.00 | 25.00 | 1.6 | 39000 |
| MS20-R020C3-10M | 20.00 | 9.0 | 4.90 | 3 | 3 | 32.00 | 19.2 | 50.00 | 25.00 | 1.6 | 35800 |
| MS20-R020C4-10L | 20.00 | 9.0 | 4.90 | 3 | 2 | 40.00 | 19.2 | 60.00 | 25.00 | 1.6 | 35800 |
| MS20-R020C5-10M | 20.00 | 9.0 | 4.90 | 3 | 3 | 50.00 | 19.2 | 95.00 | 40.00 | 1.6 | 28000 |
| MS20-R020C6-10M | 20.00 | 9.0 | 4.90 | 3 | 3 | 63.00 | 19.2 | 110.00 | 40.00 | 1.6 | 20000 |
| MS20-R025C3-10M | 25.00 | 9.0 | 3.30 | 3 | 3 | 32.00 | 23.9 | 50.00 | 32.00 | 1.6 | 30500 |
| MS20-R025C4-10M | 25.00 | 9.0 | 3.30 | 3 | 3 | 40.00 | 23.9 | 60.00 | 32.00 | 1.6 | 30500 |
| MS20-R025C5-10M | 25.00 | 9.0 | 3.30 | 3 | 3 | 50.00 | 23.9 | 95.00 | 45.00 | 1.6 | 28000 |
| MS20-R025C6-10M | 25.00 | 9.0 | 3.30 | 3 | 3 | 63.00 | 23.9 | 110.00 | 45.00 | 1.6 | 20000 |
| MS20-R032C3-10L | 32.00 | 9.0 | 2.20 | 3 | 2 | 32.00 | 30.7 | 55.00 | 37.00 | 1.6 | 25900 |
| MS20-R032C3-10M | 32.00 | 9.0 | 2.20 | 3 | 3 | 32.00 | 30.7 | 55.00 | 37.00 | 1.6 | 25900 |
| MS20-R032C4-10M | 32.00 | 9.0 | 2.20 | 3 | 3 | 40.00 | 30.7 | 70.00 | 40.00 | 1.6 | 25900 |
| MS20-R032C5-10M | 32.00 | 9.0 | 2.20 | 3 | 3 | 50.00 | 30.7 | 70.00 | 40.00 | 1.6 | 25900 |
| MS20-R032C5-10M095 | 32.00 | 9.0 | 2.20 | 3 | 3 | 50.00 | 30.7 | 95.00 | 50.00 | 1.6 | 25900 |
| MS20-R032C6-10M | 32.00 | 9.0 | 2.20 | 3 | 3 | 63.00 | 30.7 | 80.00 | 40.00 | 1.6 | 20000 |
| MS20-R032C6-10M110 | 32.00 | 9.0 | 2.20 | 3 | 3 | 63.00 | 30.7 | 110.00 | 50.00 | 1.6 | 20000 |
| MS20-R036C3-10M | 36.00 | 9.0 | 1.90 | 3 | 3 | 32.00 | 34.6 | 40.00 | 1.6 | 24100 | |
| MS20-R036C3-10M075 | 36.00 | 9.0 | 1.90 | 3 | 3 | 32.00 | 34.6 | 75.00 | 1.6 | 24100 | |
| MS20-R040C4-10H | 40.00 | 9.0 | 1.60 | 3 | 6 | 40.00 | 38.5 | 75.00 | 52.00 | 1.6 | 22600 |
| MS20-R040C4-10M | 40.00 | 9.0 | 1.60 | 3 | 4 | 40.00 | 38.5 | 75.00 | 52.00 | 1.6 | 22600 |
| MS20-R040C5-10H | 40.00 | 9.0 | 1.60 | 3 | 6 | 50.00 | 38.5 | 75.00 | 50.00 | 1.6 | 22600 |
| MS20-R040C5-10M | 40.00 | 9.0 | 1.60 | 3 | 4 | 50.00 | 38.5 | 75.00 | 50.00 | 1.6 | 22600 |
| MS20-R040C6-10M | 40.00 | 9.0 | 1.60 | 3 | 4 | 63.00 | 38.5 | 80.00 | 50.00 | 1.6 | 20000 |
| MS20-R044C4-10M | 44.00 | 9.0 | 1.50 | 3 | 4 | 40.00 | 42.5 | 50.00 | 1.6 | 21300 | |
| MS20-R044C4-10M080 | 44.00 | 9.0 | 1.40 | 3 | 4 | 40.00 | 42.5 | 80.00 | 1.6 | 21300 | |
| MS20-R050C5-10M | 50.00 | 9.0 | 1.20 | 3 | 5 | 50.00 | 48.5 | 70.00 | 47.00 | 1.6 | 19800 |
| MS20-R050C6-10M | 50.00 | 9.0 | 1.20 | 3 | 5 | 63.00 | 48.5 | 80.00 | 50.00 | 1.6 | 19800 |
| MS20-R054C5-10M | 54.00 | 9.0 | 1.10 | 3 | 5 | 50.00 | 52.5 | 50.00 | 1.6 | 18900 | |
| MS20-R054C5-10M080 | 54.00 | 9.0 | 1.10 | 3 | 5 | 50.00 | 52.5 | 80.00 | 1.6 | 18900 | |
| MS20-R063C5-10M | 63.00 | 9.0 | 0.90 | 3 | 6 | 50.00 | 61.4 | 50.00 | 1.6 | 17300 | |
| MS20-R063C6-10M | 63.00 | 9.0 | 0.90 | 3 | 6 | 63.00 | 61.4 | 80.00 | 54.00 | 1.6 | 17300 |
| MS20-R066C6-10M | 66.00 | 9.0 | 0.80 | 3 | 6 | 63.00 | 64.4 | 50.00 | 1.6 | 16900 | |
| MS20-R066C6-10M080 | 66.00 | 9.0 | 0.80 | 3 | 6 | 63.00 | 64.4 | 80.00 | 1.6 | 16900 |
