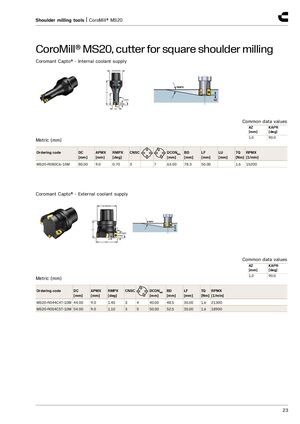

Инструменты для фрезерования уступов | CoroMill® MS20
CoroMill® MS20, фреза для фрезерования прямоугольных уступов
Coromant Capto® - Внутренняя подача СОЖ
Стандартные значения параметров:
AZ: 1.0 [мм], KAPR: 90.0 [град]
Метрические размеры (мм)
| Артикул | DC [мм] | APMX [мм] | RMPX [град] | CNSC | DCONMS [мм] | BD [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [1/мин] | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MS20-R080C6-10M | 80.00 | 9.0 | 0.70 | 3 | 7 | 63.00 | 78.3 | 50.00 | 1.6 | 15200 |
Coromant Capto® - Наружная подача СОЖ
Стандартные значения параметров:
AZ: 1.0 [мм], KAPR: 90.0 [град]
| Артикул | DC [мм] | APMX [мм] | RMPX [град] | CNSC | DCONMS [мм] | BD [мм] | LF [мм] | TQ [Нм] | RPMX [1/мин] | |
|---|---|---|---|---|---|---|---|---|---|---|
| MS20-R044C4T-10M | 44.00 | 9.0 | 1.40 | 3 | 4 | 40.00 | 48.5 | 35.00 | 1.6 | 21300 |
| MS20-R054C5T-10M | 54.00 | 9.0 | 1.10 | 3 | 5 | 50.00 | 52.5 | 35.00 | 1.6 | 18900 |
