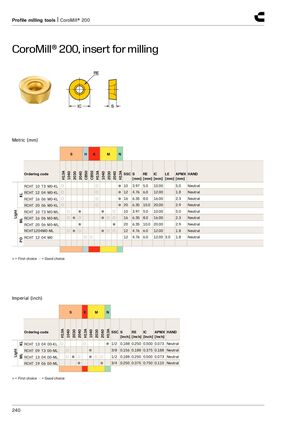

Profile milling tools | CoroMill® 200 CoroMill® 200, insert for milling Metric (mm) S H K M N H13A H13A H13A CB50 CB50 1040 2030 2040 1040 2030 2040 Ordering code SSC S RE IC LE APMX HAND [mm] [mm] [mm] [mm] [mm] RCHT 10 T3 M0-KL ○ ○ ● 10 3.97 5.0 10.00 5.0 Neutral RCHT 12 04 M0-KL ○ ○ ● 12 4.76 6.0 12.00 1.8 Neutral KL RCHT 16 06 M0-KL ○ ○ ● 16 6.35 8.0 16.00 2.3 Neutral RCHT 20 06 M0-KL ○ ○ ● 20 6.35 10.0 20.00 2.9 Neutral RCHT 10 T3 M0-ML ○ ● ● ○ 10 3.97 5.0 10.00 5.0 Neutral Light RCHT 16 06 M0-ML ○●○ ●○○ 16 6.35 8.0 16.00 2.3 Neutral ML RCHT 20 06 M0-ML ● ● 20 6.35 10.0 20.00 2.9 Neutral RCHT1204M0-ML ○●○ ●○○ 12 4.76 6.0 12.00 1.8 Neutral RCHT 12 04 M0 ○○ 12 4.76 6.0 12.00 3.0 1.8 Neutral PO ● = First choice ○ = Good choice Imperial (inch) S K M N H13A H13A H13A 1040 2030 2040 1040 2030 2040 Ordering code SSC S RE IC APMX HAND [inch] [inch] [inch] [inch] ○ ○ ● 1/2 0.188 0.250 0.500 0.073 Neutral KL RCHT 13 04 00-KL RCHT 09 T3 00-ML ○ ● 3/8 0.156 0.188 0.375 0.188 Neutral Light ○●○ ●○○ ML RCHT 13 04 00-ML 1/2 0.188 0.250 0.500 0.073 Neutral RCHT 19 06 00-ML ● ● 3/4 0.250 0.375 0.750 0.110 Neutral ● = First choice ○ = Good choice 240
