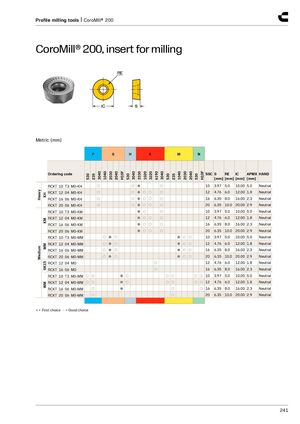

CoroMill® 200, insert for milling
Metric (mm)
| P | S | H | K | M | N | |||||||
| Ordering code | 530 235 | 3040 1040 2030 | 2040 H10F 530 | 3040 3330 1020 | 3220 6190 3040 | 530 235 1040 | 2030 2040 530 | H10F SSC | S [mm] | RE [mm] | IC [mm] APM [mm | X ] HAND |
| RCKT 10 T3 M0-KH | ○ | ○● | ○ | 10 | 3.97 | 5.0 | 10.00 5.0 | Neutral | ||||
| avy H RCKT 12 04 M0-KH | ○ | ○●○ | ○ ○ | 12 | 4.76 | 6.0 | 12.00 1.8 | Neutral | ||||
| He K RCKT 16 06 M0-KH | ○ | ○●○ | ○ ○ | 16 | 6.35 | 8.0 | 16.00 2.3 | Neutral | ||||
| RCKT 20 06 M0-KH | ○ | ○●○ | ○ ○ | 20 | 6.35 | 10.0 | 20.00 2.9 | Neutral | ||||
| RCKT 10 T3 M0-KM | ●○ | ○ | 10 | 3.97 | 5.0 | 10.00 5.0 | Neutral | |||||
| M RCKT 12 04 M0-KM | ●○ | ○ ○ | 12 | 4.76 | 6.0 | 12.00 1.8 | Neutral | |||||
| K RCKT 16 06 M0-KM | ●○ | ○ ○ | 16 | 6.35 | 8.0 | 16.00 2.3 | Neutral | |||||
| RCKT 20 06 M0-KM | ●○ | ○ ○ | 20 | 6.35 | 10.0 | 20.00 2.9 | Neutral | |||||
| RCKT 10 T3 M0-MM | ○● | ○ | ● | ○○ | 10 | 3.97 | 5.0 | 10.00 5.0 | Neutral | |||
| M RCKT 12 04 M0-MM | ○● | ○ | ● | ○○ | 12 | 4.76 | 6.0 | 12.00 1.8 | Neutral | |||
| dium M RCKT 16 06 M0-MM | ○● | ○ | ● | ○○ | 16 | 6.35 | 8.0 | 16.00 2.3 | Neutral | |||
| Me RCKT 20 06 M0-MM | ○● | ○ | ● | ○○ | 20 | 6.35 | 10.0 | 20.00 2.9 | Neutral | |||
| K15 RCKT 12 04 MO | ○ | 12 | 4.76 | 6.0 | 12.00 1.8 | Neutral | ||||||
| S RCKT 16 06 MO | ○ | 16 | 6.35 | 8.0 | 16.00 2.3 | Neutral | ||||||
| RCKT 10 T3 M0-WM | ○○ | ●○ | ○○ | ○ | ○10 | 3.97 | 5.0 | 10.00 5.0 | Neutral | |||
| M RCKT 12 04 M0-WM | ○○ | ●○ | ○○ | ○ | ○12 | 4.76 | 6.0 | 12.00 1.8 | Neutral | |||
| W RCKT 16 06 M0-WM | ○ | ● | ○ | ○16 | 6.35 | 8.0 | 16.00 2.3 | Neutral | ||||
| RCKT 20 06 M0-WM | ○ | ○ | 20 | 6.35 | 10.0 | 20.00 2.9 | Neutral |
- = First choice = Good choice
