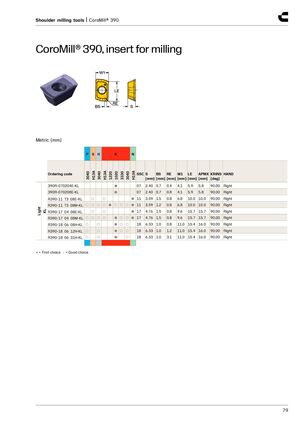

CoroMill® 390, insert for milling
Metric (mm)
| P S | H | K | N | ||||||||||||||
| Ordering code | 3040 H13A | 3040 | H13A | 1220 | 1020 | 3330 3040 | H13A SSC | S [mm] | BS [mm] | RE [mm] | W1 [mm] | LE [mm] | APMX [mm] | KRINS [deg] | HAND | ||
| 390R-070204E-KL | ● | 07 | 2.40 | 0.7 | 0.4 | 4.1 | 5.9 | 5.8 | 90.00 | Right | |||||||
| 390R-070208E-KL | ● | 07 | 2.40 | 0.7 | 0.8 | 4.1 | 5.9 | 5.8 | 90.00 | Right | |||||||
| R390-11 T3 08E-KL | ○ | ○ | ●11 | 3.59 | 1.5 | 0.8 | 6.8 | 10.0 | 10.0 | 90.00 | Right | ||||||
| t | R390-11 T3 08M-KL | ○○ | ○ | ○ | ● | ○ | ○ | ○ | ●11 | 3.59 | 1.2 | 0.8 | 6.8 | 10.0 | 10.0 | 90.00 | Right |
| Ligh KL | R390-17 04 08E-KL | ○ | ○ | ●17 | 4.76 | 1.5 | 0.8 | 9.6 | 15.7 | 15.7 | 90.00 | Right | |||||
| R390-17 04 08M-KL | ○○ | ○ | ○ | ● | ○ | ○ | ●17 | 4.76 | 1.5 | 0.8 | 9.6 | 15.7 | 15.7 | 90.00 | Right | ||
| R390-18 06 08H-KL | ○ | ○ | ● | ○ | ○ | 18 | 6.33 | 1.0 | 0.8 | 11.0 | 15.4 | 16.0 | 90.00 | Right | |||
| R390-18 06 12H-KL | ○ | ○ | ● | ○ | ○ | 18 | 6.33 | 1.0 | 1.2 | 11.0 | 15.4 | 16.0 | 90.00 | Right | |||
| R390-18 06 31H-KL | ○ | ○ | ● | ○ | 18 | 6.33 | 1.0 | 3.1 | 11.0 | 15.4 | 16.0 | 90.00 | Right |
- = First choice = Good choice
