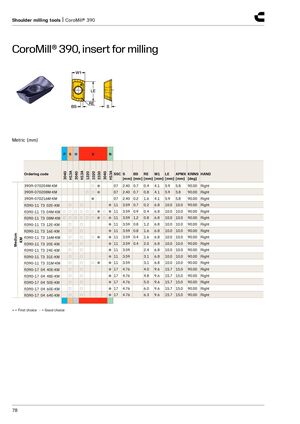

CoroMill® 390, insert for milling
Metric (mm)
| Ordering code | P 3040 | S H13A | H 3040 | H13A | K 1220 1020 | 3330 | N 3040 H13A SSC | S [mm] | BS [mm] | RE [mm] | W1 [mm] | LE [mm] | APMX [mm] | KRINS [deg] | HAND | |
| 390R-070204M-KM | ○ | ● | 07 | 2.40 | 0.7 | 0.4 | 4.1 | 5.9 | 5.8 | 90.00 | Right | |||||
| 390R-070208M-KM | ○○ | ● | 07 | 2.40 | 0.7 | 0.8 | 4.1 | 5.9 | 5.8 | 90.00 | Right | |||||
| 390R-070216M-KM | ● | 07 | 2.40 | 0.2 | 1.6 | 4.1 | 5.9 | 5.8 | 90.00 | Right | ||||||
| R390-11 T3 02E-KM | ○ | ○ | ●11 | 3.59 | 0.7 | 0.2 | 6.8 | 10.0 | 10.0 | 90.00 | Right | |||||
| R390-11 T3 04M-KM | ○ | ○ | ○ | ○ | ○○ | ● | ○●11 | 3.59 | 0.9 | 0.4 | 6.8 | 10.0 | 10.0 | 90.00 | Right | |
| R390-11 T3 08M-KM | ○ | ○ | ○ | ○ | ○○ | ● | ○●11 | 3.59 | 1.2 | 0.8 | 6.8 | 10.0 | 10.0 | 90.00 | Right | |
| R390-11 T3 12E-KM | ○ | ○ | ●11 | 3.59 | 0.8 | 1.2 | 6.8 | 10.0 | 10.0 | 90.00 | Right | |||||
| R390-11 T3 16E-KM | ○ | ○ | ●11 | 3.59 | 0.8 | 1.6 | 6.8 | 10.0 | 10.0 | 90.00 | Right | |||||
| dium M | R390-11 T3 16M-KM | ○ | ○ | ○ | ● | ●11 | 3.59 | 0.4 | 1.6 | 6.8 | 10.0 | 10.0 | 90.00 | Right | ||
| Me K | R390-11 T3 20E-KM | ○ | ○ | ●11 | 3.59 | 0.4 | 2.0 | 6.8 | 10.0 | 10.0 | 90.00 | Right | ||||
| R390-11 T3 24E-KM | ○ | ○ | ●11 | 3.59 | 2.4 | 6.8 | 10.0 | 10.0 | 90.00 | Right | ||||||
| R390-11 T3 31E-KM | ○ | ○ | ●11 | 3.59 | 3.1 | 6.8 | 10.0 | 10.0 | 90.00 | Right | ||||||
| R390-11 T3 31M-KM | ○ | ○ | ○ | ● | ●11 | 3.59 | 3.1 | 6.8 | 10.0 | 10.0 | 90.00 | Right | ||||
| R390-17 04 40E-KM | ○ | ○ | ●17 | 4.76 | 4.0 | 9.6 | 15.7 | 15.0 | 90.00 | Right | ||||||
| R390-17 04 48E-KM | ○ | ○ | ●17 | 4.76 | 4.8 | 9.6 | 15.7 | 15.0 | 90.00 | Right | ||||||
| R390-17 04 50E-KM | ○ | ○ | ●17 | 4.76 | 5.0 | 9.6 | 15.7 | 15.0 | 90.00 | Right | ||||||
| R390-17 04 60E-KM | ○ | ○ | ●17 | 4.76 | 6.0 | 9.6 | 15.7 | 15.0 | 90.00 | Right | ||||||
| R390-17 04 64E-KM | ○ | ○ | ●17 | 4.76 | 6.3 | 9.6 | 15.7 | 15.0 | 90.00 | Right |
- = First choice = Good choice
