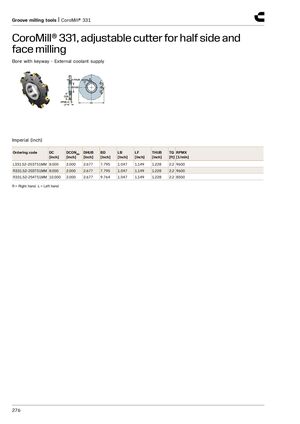

face milling
Bore with keyway - External coolant supply
Imperial (inch)
| Ordering code | DC | DCONMS | DHUB | BD | LB | LF | THUB | TQ RPMX |
| [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [ft] [1/min] | |
| L331.52-203T51MM | 8.000 | 2.000 | 2.677 | 7.795 | 1.047 | 1.149 | 1.228 | 2.2 9600 |
| R331.52-203T51MM | 8.000 | 2.000 | 2.677 | 7.795 | 1.047 | 1.149 | 1.228 | 2.2 9600 |
| R331.52-254T51MM | 10.000 | 2.000 | 2.677 | 9.764 | 1.047 | 1.149 | 1.228 | 2.2 8500 |
R = Right hand, L = Left hand
