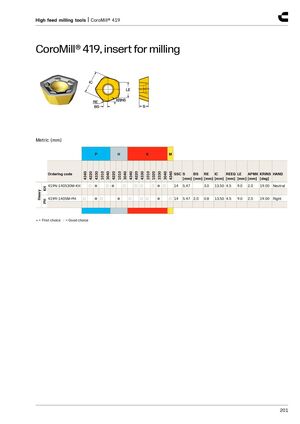

High feed milling tools | CoroMill® 419 CoroMill® 419, insert for milling Metric (mm) P H K M 4340 4220 4330 1010 3040 4220 1010 3040 4340 4220 4330 1010 1020 3330 3040 4340 Ordering code SSC S BS RE IC REEQ LE APMX KRINS HAND [mm] [mm] [mm] [mm] [mm] [mm] [mm] [deg] 419N-140530M-KH ○● ○● ○ ○○ ○●○ 14 5.47 3.0 13.50 4.5 9.0 2.0 19.00 Neutral KH Heavy 419R-1405M-PH ○ ●○ ● ○ ○○ ● ○ 14 5.47 2.0 0.8 13.50 4.5 9.0 2.0 19.00 Right PH ● = First choice ○ = Good choice 201
