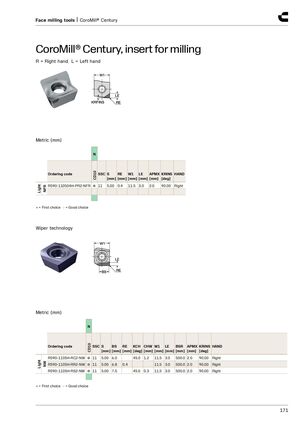

CoroMill® Century, insert for milling
R = Right hand, L = Left hand
Metric (mm)
N
| Ordering code | SSC S | RE | W1 | LE | APMX KRINS HAND | ||
| [mm] [mm] [mm] [mm] [mm] | [deg] | ||||||
| R590-110504H-PR2-NFR | 11 | 5.00 0.4 | 11.5 3.0 | 2.0 | 90.00 Right |
- = First choice ○ = Good choice
Wiper technology
Metric (mm)
N
Ordering code SSC S BS RE KCH CHW W1 LE BSR APMX KRINS HAND
[mm] [mm] [mm] [deg] [mm] [mm] [mm] [mm] [mm] [deg]
| R590-1105H-RC2-NW | 11 | 5.00 6.0 | 45.0 1.2 | 11.5 3.0 | 500.0 2.0 | 90.00 Right | |
| R590-1105H-RR2-NW | 11 | 5.00 6.8 | 0.4 | 11.5 3.0 | 500.0 2.0 | 90.00 Right | |
| R590-1105H-RS2-NW | 11 | 5.00 7.0 | 45.0 0.3 | 11.5 3.0 | 500.0 2.0 | 90.00 Right |
