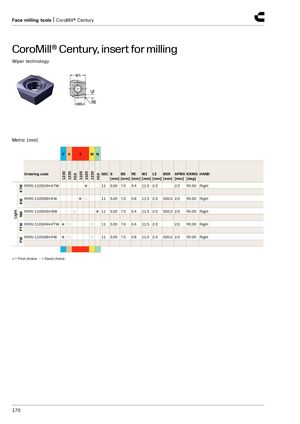

CoroMill® Century, insert for milling
Wiper technology
Metric (mm)
| Ordering code | P 1230 | S 1230 H10 | K 1220 | M 1020 1230 | N H10 SSC | S [mm] | BS [mm] | RE [mm] | W1 [mm] | LE [mm] | BSR [mm] | APMX [mm] | KRINS [deg] | HAND |
| KTW R590-110504H-KTW | ● | 11 | 5.00 | 7.0 | 0.4 | 11.5 | 2.0 | 2.0 | 90.00 | Right | ||||
| KW R590-110508H-KW | ● | ○ | 11 | 5.00 | 7.0 | 0.8 | 11.5 | 2.0 | 500.0 | 2.0 | 90.00 | Right | ||
| Light NW R590-110504H-NW | ○ | ●11 | 5.00 | 7.0 | 0.4 | 11.5 | 2.0 | 500.0 | 2.0 | 90.00 | Right | |||
| PTW R590-110504H-PTW | ● | ○ | ○ | 11 | 5.00 | 7.0 | 0.4 | 11.5 | 2.0 | 2.0 | 90.00 | Right | ||
| PW R590-110508H-PW | ● | ○ | ○ | 11 | 5.00 | 7.0 | 0.8 | 11.5 | 2.0 | 500.0 | 2.0 | 90.00 | Right |
- = First choice ○ = Good choice
