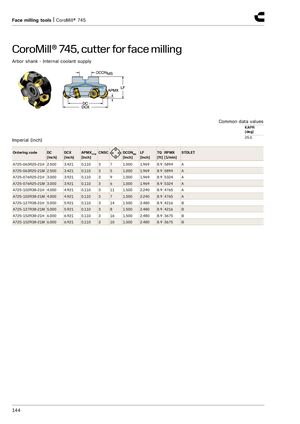

CoroMill® 745, cutter for face milling
Arbor shank - Internal coolant supply
Common data values
KAPR [deg] Imperial (inch) 25.0
| Ordering code | DC [inch] | DCX [inch] | APMXFFW [inch] | CNSC | DCONMS [inch] | LF [inch] | TQ [ft] | RPMX [1/min] | STDLET | |
| A725-063R25-21H | 2.500 | 3.421 | 0.110 | 3 | 7 | 1.000 | 1.969 | 8.9 | 5894 | A |
| A725-063R25-21M | 2.500 | 3.421 | 0.110 | 3 | 5 | 1.000 | 1.969 | 8.9 | 5894 | A |
| A725-076R25-21H | 3.000 | 3.921 | 0.110 | 3 | 9 | 1.000 | 1.969 | 8.9 | 5324 | A |
| A725-076R25-21M | 3.000 | 3.921 | 0.110 | 3 | 6 | 1.000 | 1.969 | 8.9 | 5324 | A |
| A725-102R38-21H | 4.000 | 4.921 | 0.110 | 3 | 11 | 1.500 | 2.240 | 8.9 | 4765 | A |
| A725-102R38-21M | 4.000 | 4.921 | 0.110 | 3 | 7 | 1.500 | 2.240 | 8.9 | 4765 | A |
| A725-127R38-21H | 5.000 | 5.921 | 0.110 | 3 | 14 | 1.500 | 2.480 | 8.9 | 4216 | B |
| A725-127R38-21M | 5.000 | 5.921 | 0.110 | 3 | 8 | 1.500 | 2.480 | 8.9 | 4216 | B |
| A725-152R38-21H | 6.000 | 6.921 | 0.110 | 3 | 16 | 1.500 | 2.480 | 8.9 | 3675 | B |
| A725-152R38-21M | 6.000 | 6.921 | 0.110 | 3 | 10 | 1.500 | 2.480 | 8.9 | 3675 | B |
