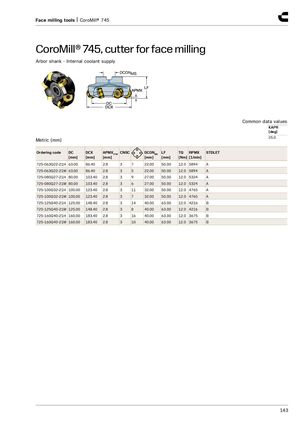

CoroMill® 745, cutter for face milling
Arbor shank - Internal coolant supply
Common data values
KAPR [deg] Metric (mm) 25.0
| Ordering code | DC [mm] | DCX [mm] | APMXFFW [mm] | CNSC | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | STDLET | |
| 725-063Q22-21H | 63.00 | 86.40 | 2.8 | 3 | 7 | 22.00 | 50.00 | 12.0 | 5894 | A |
| 725-063Q22-21M | 63.00 | 86.40 | 2.8 | 3 | 5 | 22.00 | 50.00 | 12.0 | 5894 | A |
| 725-080Q27-21H | 80.00 | 103.40 | 2.8 | 3 | 9 | 27.00 | 50.00 | 12.0 | 5324 | A |
| 725-080Q27-21M | 80.00 | 103.40 | 2.8 | 3 | 6 | 27.00 | 50.00 | 12.0 | 5324 | A |
| 725-100Q32-21H | 100.00 | 123.40 | 2.8 | 3 | 11 | 32.00 | 50.00 | 12.0 | 4765 | A |
| 725-100Q32-21M | 100.00 | 123.40 | 2.8 | 3 | 7 | 32.00 | 50.00 | 12.0 | 4765 | A |
| 725-125Q40-21H | 125.00 | 148.40 | 2.8 | 3 | 14 | 40.00 | 63.00 | 12.0 | 4216 | B |
| 725-125Q40-21M | 125.00 | 148.40 | 2.8 | 3 | 8 | 40.00 | 63.00 | 12.0 | 4216 | B |
| 725-160Q40-21H | 160.00 | 183.40 | 2.8 | 3 | 16 | 40.00 | 63.00 | 12.0 | 3675 | B |
| 725-160Q40-21M | 160.00 | 183.40 | 2.8 | 3 | 10 | 40.00 | 63.00 | 12.0 | 3675 | B |
