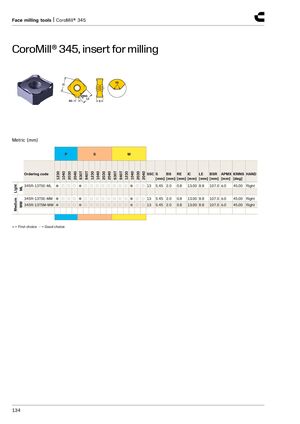

CoroMill® 345, insert for milling
Metric (mm)
| P | S M | ||||||||||||||
| Ordering code | 1230 | 1040 2030 | 2040 | S30T S40T 1230 1040 2030 2040 S30T S40T 1230 1040 | 2030 | 2040 SSC | S [mm] | BS [mm | ] RE [mm] | IC [mm] | LE [mm | ] BSR [mm] APMX [mm] | KRINS [deg] | HAND | |
| Light ML | 345R-13T5E-ML | ● | ○○ | ○ | ●○○○○○○○○● | ○ | ○13 | 5.45 | 2.0 | 0.8 | 13.00 | 8.8 | 107.0 6.0 | 45.00 | Right |
| m | 345R-13T5E-MM | ● | ○○ | ○ | ●○○○○○○○○● | ○ | ○13 | 5.45 | 2.0 | 0.8 | 13.00 | 8.8 | 107.0 6.0 | 45.00 | Right |
| Mediu MM | 345R-13T5M-MM | ● | ○○ | ○ | ●○○○○○○○○● | ○ | ○13 | 5.45 | 2.0 | 0.8 | 13.00 | 8.8 | 107.0 6.0 | 45.00 | Right |
- = First choice ○ = Good choice
