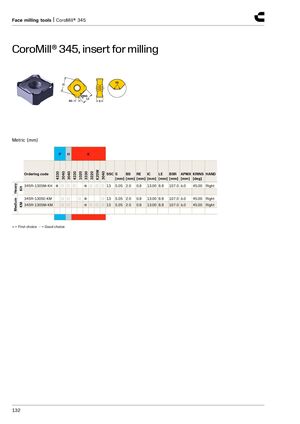

Face milling tools | CoroMill® 345 CoroMill® 345, insert for milling Metric (mm) P H K K20W 4330 3040 3040 4330 1020 3330 3220 3040 Ordering code SSC S BS RE IC LE BSR APMX KRINS HAND [mm] [mm] [mm] [mm] [mm] [mm] [mm] [deg] ●○○○ ● ○ ○ ○ 13 Heavy 345R-1305M-KH 5.05 2.0 0.8 13.00 8.8 107.0 6.0 45.00 Right KH 345R-1305E-KM ○○ ○● ○ 13 5.05 2.0 0.8 13.00 8.8 107.0 6.0 45.00 Right Medium ○○ ● ○ ○ ○ 13 KM 345R-1305M-KM 5.05 2.0 0.8 13.00 8.8 107.0 6.0 45.00 Right ● = First choice ○ = Good choice 132
