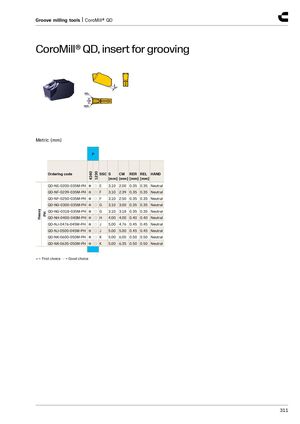

CoroMill® QD, insert for grooving
Metric (mm)
| Ordering code | P 4340 | 1230 | SSC | S [mm] | CW [mm] | RER [mm] | REL [mm] | HAND | |
| QD-NE-0200-035M-PH | ● | ○ | E | 3.10 | 2.00 | 0.35 | 0.35 | Neutral | |
| QD-NF-0239-035M-PH | ● | ○ | F | 3.10 | 2.39 | 0.35 | 0.35 | Neutral | |
| QD-NF-0250-035M-PH | ● | ○ | F | 3.10 | 2.50 | 0.35 | 0.35 | Neutral | |
| QD-NG-0300-035M-PH | ● | ○ | G | 3.10 | 3.00 | 0.35 | 0.35 | Neutral | |
| avy H | QD-NG-0318-035M-PH | ● | ○ | G | 3.10 | 3.18 | 0.35 | 0.35 | Neutral |
| He P | QD-NH-0400-040M-PH | ● | ○ | H | 4.00 | 4.00 | 0.40 | 0.40 | Neutral |
| QD-NJ-0476-045M-PH | ● | ○ | J | 5.00 | 4.76 | 0.45 | 0.45 | Neutral | |
| QD-NJ-0500-045M-PH | ● | ○ | J | 5.00 | 5.00 | 0.45 | 0.45 | Neutral | |
| QD-NK-0600-050M-PH | ● | ○ | K | 5.00 | 6.00 | 0.50 | 0.50 | Neutral | |
| QD-NK-0635-050M-PH | ● | ○ | K | 5.00 | 6.35 | 0.50 | 0.50 | Neutral |
- = First choice ○ = Good choice
