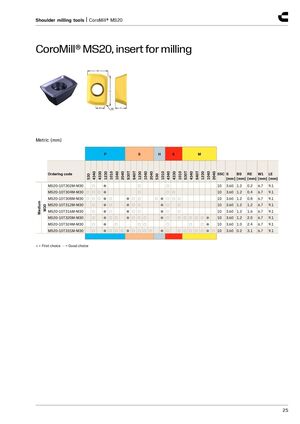

Shoulder milling tools | CoroMill® MS20 CoroMill® MS20, insert for milling W1 LE BS RE S Metric (mm) P S H K M S30T S40T S30T S40T 4340 4330 1230 1010 1040 2040 1230 1040 2040 1010 4340 4330 1010 4340 1230 1040 2040 Ordering code SSC S BS RE W1 LE 530 530 [mm] [mm] [mm] [mm] [mm] MS20-10T302M-M30 ○ ● ○ ○ 10 3.60 1.2 0.2 6.7 9.1 MS20-10T304M-M30 ○ ○ ○ ● ○ ○○ 10 3.60 1.2 0.4 6.7 9.1 MS20-10T308M-M30 ○ ○ ○ ● ○ ●○○ ○●○○○ 10 3.60 1.2 0.8 6.7 9.1 ○ ●○ ●○○ ●○ ○ Medium MS20-10T312M-M30 10 3.60 1.2 1.2 6.7 9.1 M30 MS20-10T316M-M30 ○ ●○ ●○○ ●○ ○ 10 3.60 1.2 1.6 6.7 9.1 MS20-10T320M-M30 ○ ●○○ ●○○○ ● ○ ○ ○ ○ ○ ○ ● 10 3.60 1.2 2.0 6.7 9.1 MS20-10T324M-M30 ○ ● ○ ○○ ○ ○ ○ ● 10 3.60 1.0 2.4 6.7 9.1 MS20-10T331M-M30 ○ ● ○ ○ ○ ● ○ ○ ○ ○ ● ○ ○ ○ ○ ○ ○ ● ○ 10 3.60 0.2 3.1 6.7 9.1 ● = First choice ○ = Good choice 25
