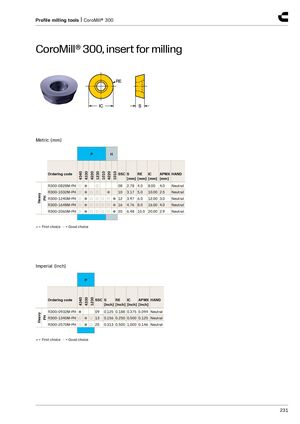

Profile milling tools | CoroMill® 300 CoroMill® 300, insert for milling Metric (mm) P H 4340 4330 4220 1230 1010 4220 1010 Ordering code SSC S RE IC APMX HAND [mm] [mm] [mm] [mm] R300-0828M-PH ○● ○ 08 2.78 4.0 8.00 4.0 Neutral R300-1032M-PH ○ ● ○ ○ ● 10 3.17 5.0 10.00 2.5 Neutral Heavy R300-1240M-PH ○ ● ○ ○ ○ ○ ● 12 PH 3.97 6.0 12.00 3.0 Neutral R300-1648M-PH ○ ● ○ ○ ○ ○ ● 16 4.76 8.0 16.00 4.0 Neutral R300-2060M-PH ○ ● ○ ○ ○ ○ ● 20 6.48 10.0 20.00 2.9 Neutral ● = First choice ○ = Good choice Imperial (inch) P 4340 4330 1230 Ordering code SSC S RE IC APMX HAND [inch] [inch] [inch] [inch] R300-0932M-PH ● 09 0.125 0.188 0.375 0.094 Neutral Heavy ○ ● ○ 13 PH R300-1340M-PH 0.156 0.250 0.500 0.125 Neutral R300-2570M-PH ○ ● ○ 25 0.313 0.500 1.000 0.146 Neutral ● = First choice ○ = Good choice 231
