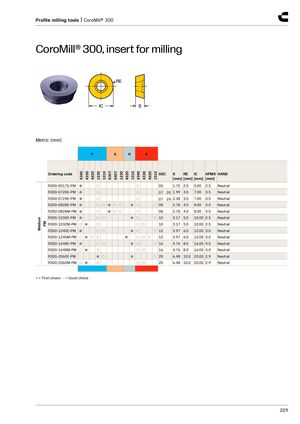

CoroMill® 300, insert for milling
Metric (mm)
| P | S | H | K | |||||||||||
| Ordering code | 4340 4330 | 4220 1230 | 1010 | S30T S40T | 1230 4220 1010 4340 | 4330 4220 | 1010 SSC | S [mm] | RE [mm] | IC [mm] | APMX [mm] | HAND | ||
| R300-0517E-PM | ● | ○ | ○ | 05 | 1.70 | 2.5 | 5.00 | 2.5 | Neutral | |||||
| R300-0720E-PM | ● | ○ | ○ | 07 | 20 | 1.99 | 3.5 | 7.00 | 3.5 | Neutral | ||||
| R300-0724E-PM | ● | ○ | ○ | 07 | 24 | 2.38 | 3.5 | 7.00 | 3.5 | Neutral | ||||
| R300-0828E-PM | ● | ○ | ○ | ●○ | ○ ●○ | ○08 | 2.78 | 4.0 | 8.00 | 4.0 | Neutral | |||
| R300-0828M-PM | ● | ○ | ●○ | ○ ○ | 08 | 2.78 | 4.0 | 8.00 | 4.0 | Neutral | ||||
| um | R300-1032E-PM | ● | ○ | ○ | ●○ | ○10 | 3.17 | 5.0 | 10.00 | 2.5 | Neutral | |||
| edi PM | R300-1032M-PM | ○● | ○ | ○ | ○ | 10 | 3.17 | 5.0 | 10.00 | 2.5 | Neutral | |||
| M | R300-1240E-PM | ● | ○ | ○ | ●○ | ○12 | 3.97 | 6.0 | 12.00 | 3.0 | Neutral | |||
| R300-1240M-PM | ○● | ○○ | ● ○ | ○○ | 12 | 3.97 | 6.0 | 12.00 | 3.0 | Neutral | ||||
| R300-1648E-PM | ● | ○ | ○ | ●○ | ○16 | 4.76 | 8.0 | 16.00 | 4.0 | Neutral | ||||
| R300-1648M-PM | ○● | ○ | ○ | ○ | 16 | 4.76 | 8.0 | 16.00 | 4.0 | Neutral | ||||
| R300-2060E-PM | ● | ○ | ● | ○20 | 6.48 | 10.0 | 20.00 | 2.9 | Neutral | |||||
| R300-2060M-PM | ○● | ○ | ○ | ○ | 20 | 6.48 | 10.0 | 20.00 | 2.9 | Neutral |
- = First choice = Good choice
