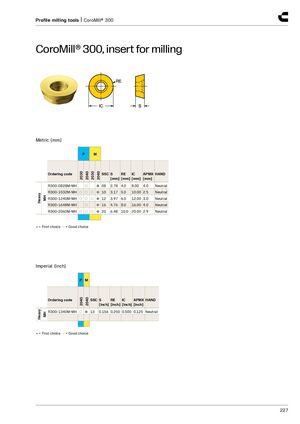

Profile milling tools | CoroMill® 300 CoroMill® 300, insert for milling Metric (mm) P M 2030 2040 2030 2040 Ordering code SSC S RE IC APMX HAND [mm] [mm] [mm] [mm] R300-0828M-MH ○ ● 08 2.78 4.0 8.00 4.0 Neutral R300-1032M-MH ○ ○ ○ ● 10 3.17 5.0 10.00 2.5 Neutral Heavy R300-1240M-MH ○ ○ ○ ● 12 MH 3.97 6.0 12.00 3.0 Neutral R300-1648M-MH ○ ● 16 4.76 8.0 16.00 4.0 Neutral R300-2060M-MH ○ ○ ○ ● 20 6.48 10.0 20.00 2.9 Neutral ● = First choice ○ = Good choice Imperial (inch) P M 2040 2040 Ordering code SSC S RE IC APMX HAND [inch] [inch] [inch] [inch] ○ ● 13 Heavy R300-1340M-MH 0.156 0.250 0.500 0.125 Neutral MH ● = First choice ○ = Good choice 227
