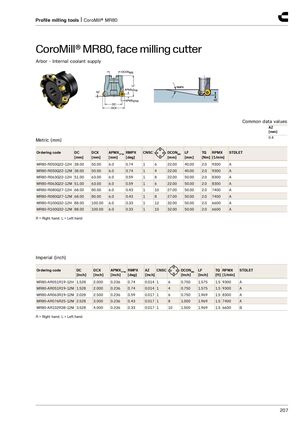

CoroMill® MR80, face milling cutter
Arbor - Internal coolant supply
Common data values
AZ [mm] Metric (mm) 0.4
| Ordering code | DC [mm] | DCX [mm] | APMXFF [mm] | W RMPX [deg] | CNS | C | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | STDLET |
| MR80-R050Q22-12H | 38.00 | 50.00 | 6.0 | 0.74 | 1 | 6 | 22.00 | 40.00 | 2.0 | 9300 | A |
| MR80-R050Q22-12M | 38.00 | 50.00 | 6.0 | 0.74 | 1 | 4 | 22.00 | 40.00 | 2.0 | 9300 | A |
| MR80-R063Q22-12H | 51.00 | 63.00 | 6.0 | 0.59 | 1 | 8 | 22.00 | 50.00 | 2.0 | 8300 | A |
| MR80-R063Q22-12M | 51.00 | 63.00 | 6.0 | 0.59 | 1 | 6 | 22.00 | 50.00 | 2.0 | 8300 | A |
| MR80-R080Q27-12H | 68.00 | 80.00 | 6.0 | 0.43 | 1 | 10 | 27.00 | 50.00 | 2.0 | 7400 | A |
| MR80-R080Q27-12M | 68.00 | 80.00 | 6.0 | 0.43 | 1 | 8 | 27.00 | 50.00 | 2.0 | 7400 | A |
| MR80-R100Q32-12H | 88.00 | 100.00 | 6.0 | 0.33 | 1 | 12 | 32.00 | 50.00 | 2.0 | 6600 | A |
| MR80-R100Q32-12M | 88.00 | 100.00 | 6.0 | 0.33 | 1 | 10 | 32.00 | 50.00 | 2.0 | 6600 | A |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | DC [inch] | DCX [inch] | APMXFFW [inch] | RMPX [deg] | AZ [inch] | CNSC | DCONMS [inch] | LF [inch] | TQ [ft] RPMX [1/min] | STDLET | |
| MR80-AR051R19-12H | 1.528 | 2.000 | 0.236 | 0.74 | 0.014 | 1 | 6 | 0.750 | 1.575 | 1.5 9300 | A |
| MR80-AR051R19-12M | 1.528 | 2.000 | 0.236 | 0.74 | 0.014 | 1 | 4 | 0.750 | 1.575 | 1.5 9300 | A |
| MR80-AR063R19-12M | 2.028 | 2.500 | 0.236 | 0.59 | 0.017 | 1 | 6 | 0.750 | 1.969 | 1.5 8300 | A |
| MR80-AR076R25-12M | 2.528 | 3.000 | 0.236 | 0.43 | 0.017 | 1 | 8 | 1.000 | 1.969 | 1.5 7400 | A |
| MR80-AR102R38-12M | 3.528 | 4.000 | 0.236 | 0.33 | 0.017 | 1 | 10 | 1.500 | 1.969 | 1.5 6600 | B |
R = Right hand, L = Left hand
