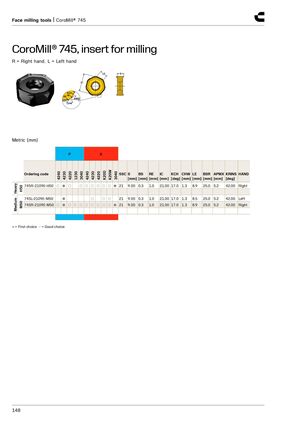

CoroMill® 745, insert for milling
R = Right hand, L = Left hand
Metric (mm)
P K
Ordering code SSC S BS RE IC KCH CHW LE BSR APMX KRINS HAND
[mm] [mm] [mm] [mm] [deg] [mm] [mm] [mm] [mm] [deg]
| 745R-2109E-H50 | 21 | 9.00 0.3 | 1.0 | 21.00 17.0 1.3 | 8.9 | 25.0 5.2 | 42.00 Right |
| 745L-2109E-M50 | 21 | 9.00 0.3 | 1.0 | 21.00 17.0 1.3 | 8.5 | 25.0 5.2 | 42.00 Left |
| 745R-2109E-M50 | 21 | 9.00 0.3 | 1.0 | 21.00 17.0 1.3 | 8.9 | 25.0 5.2 | 42.00 Right |
- = First choice = Good choice
