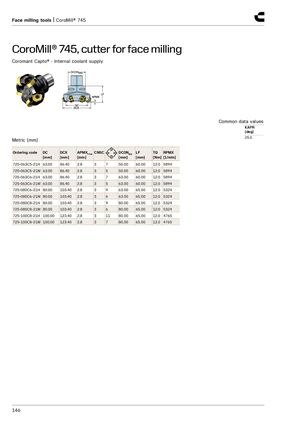

CoroMill® 745, cutter for face milling
Coromant Capto® - Internal coolant supply
Common data values
KAPR [deg] Metric (mm) 25.0
| Ordering code | DC [mm] | DCX [mm] | APMXFFW [mm] | CNSC | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | |
| 725-063C5-21H | 63.00 | 86.40 | 2.8 | 3 | 7 | 50.00 | 60.00 | 12.0 | 5894 |
| 725-063C5-21M | 63.00 | 86.40 | 2.8 | 3 | 5 | 50.00 | 60.00 | 12.0 | 5894 |
| 725-063C6-21H | 63.00 | 86.40 | 2.8 | 3 | 7 | 63.00 | 60.00 | 12.0 | 5894 |
| 725-063C6-21M | 63.00 | 86.40 | 2.8 | 3 | 5 | 63.00 | 60.00 | 12.0 | 5894 |
| 725-080C6-21H | 80.00 | 103.40 | 2.8 | 3 | 9 | 63.00 | 65.00 | 12.0 | 5324 |
| 725-080C6-21M | 80.00 | 103.40 | 2.8 | 3 | 6 | 63.00 | 65.00 | 12.0 | 5324 |
| 725-080C8-21H | 80.00 | 103.40 | 2.8 | 3 | 9 | 80.00 | 65.00 | 12.0 | 5324 |
| 725-080C8-21M | 80.00 | 103.40 | 2.8 | 3 | 6 | 80.00 | 65.00 | 12.0 | 5324 |
| 725-100C8-21H | 100.00 | 123.40 | 2.8 | 3 | 11 | 80.00 | 65.00 | 12.0 | 4765 |
| 725-100C8-21M | 100.00 | 123.40 | 2.8 | 3 | 7 | 80.00 | 65.00 | 12.0 | 4765 |
