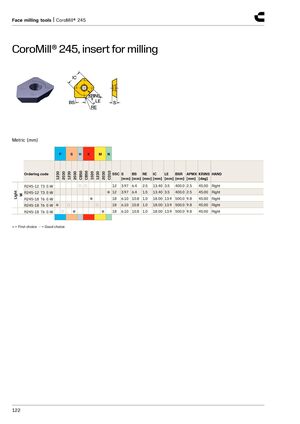

CoroMill® 245, insert for milling
Metric (mm)
| P | S H | K | M N | |||||||||||
| Ordering code | 1230 2030 | 1230 2030 CB50 | CB50 1020 | 1230 2030 CD10 SSC | S [mm] | BS [mm] | RE [mm | ] IC [mm] | LE [mm] | BSR [mm] | APMX [mm] | KRINS [deg] | HAND | |
| R245-12 T3 E-W | ○ | ○ | 12 | 3.97 | 6.4 | 2.5 | 13.40 | 3.5 | 400.0 | 2.5 | 45.00 | Right | ||
| ght W | R245-12 T3 E-W | ●12 | 3.97 | 6.4 | 1.5 | 13.40 | 3.5 | 400.0 | 2.5 | 45.00 | Right | |||
| Li | R245-18 T6 E-W | ● | 18 | 6.10 | 10.8 | 1.0 | 18.00 | 13.9 | 500.0 | 9.8 | 45.00 | Right | ||
| R245-18 T6 E-W | ● | ○ | ○ 18 | 6.10 | 10.8 | 1.0 | 18.00 | 13.9 | 500.0 | 9.8 | 45.00 | Right | ||
| R245-18 T6 E-W | ○ | ● | ● 18 | 6.10 | 10.8 | 1.0 | 18.00 | 13.9 | 500.0 | 9.8 | 45.00 | Right |
- = First choice ○ = Good choice
