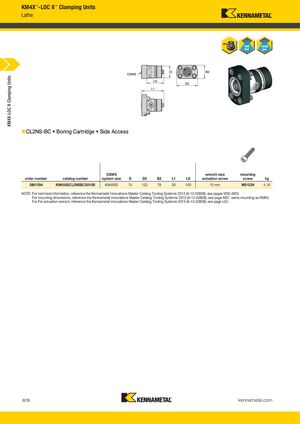

KM4X™-LOC II™ Clamping Units Lathe KM4X-LOC II Clamping Units CL2NS-BC • Boring Cartridge • Side Access CSWS wrench size mounting order number catalog number system size D D2 B2 L1 LS actuation screw screw kg 5881394 KM4X63CL2NSBC5010B KM4X63 74 122 78 30 100 10 mm MS1239 4,16 NOTE: For technical information, reference the Kennametal Innovations Master Catalog Tooling Systems 2013 (A-12-02809); see pages M32–M33. For mounting dimensions, reference the Kennametal Innovations Master Catalog Tooling Systems 2013 (A-12-02809); see page M57, same mounting as KM63. For For actuation wrench, reference the Kennametal Innovations Master Catalog Tooling Systems 2013 (A-12-02809); see page L53. B76 kennametal.com L V i KMT_KM4X_Catalog_B076_B077_EN.indd KMT 76 KM4X C l B076 B077 EN S b 1 2016 1 51 PM 9/1/16 2:05 PM
