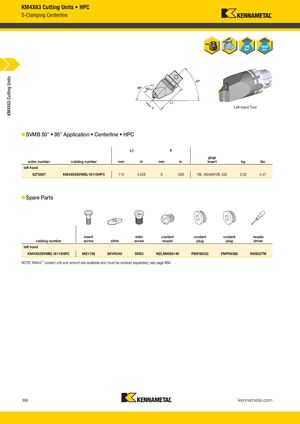

KM4X63 Cutting Units • HPC S-Clamping Centerline KM4X63 Cutting Units Left-Hand Tool SVMB 50° • 95° Application • Centerline • HPC L1 F gage order number catalog number mm in mm in insert kg lbs left hand 6275087 KM4X63SVMBL16115HPC 115 4.528 0 .000 VB..160408/VB..332 2,03 4.47 Spare Parts insert shim coolant coolant coolant nozzle catalog number screw shim screw nozzle plug plug driver left hand KM4X63SVMBL16115HPC MS1156 SKVN343 SRS3 NZLM4060140 PMP08352 PMP08360 NDS027M ™ NOTE: KM4X coolant unit and wrench are available and must be ordered separately; see page B84. B8 kennametal.com L V i KMT KMT_KM4X_Catalog_B008_B009_EN.indd 8 KM4X C l B008 B009 EN S b 1 2016 11 54 AM 9/1/16 2:04 PM
